Product Parameters
Dimension(L*W*H): 10000*2650*3700 (mm) (Customized Sizes or Designed according to customers’ needs)
Thickness: Side wall: 6 mm; bottom floor:8 mm
Payload (Kg): 80000
Volume (CBM): 40 CBM
Hydraulic system: HYVA Brand
Kingpin: JOST 3.5”/2.5” bolt-in type
Landing gear: JOST 19”
Tires: 11R22.5 /12R22.5/11.00R20/12.00R20/ 315/80R22.5
Axle: FUWA/BPW/ZY or other Brands
Suspension: Heavy duty mechanical suspension with springs/Air suspension/Bogie suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet
]]> https://www.smg-gh.com/product/tri-axles-u-box-rear-dump-tipper-semi-trailer/feed/ 0 Heavy Duty Hydraulic Dump Truck Tipper Semi Trailer https://www.smg-gh.com/product/heavy-duty-hydraulic-dump-truck-tipper-semi-trailer/ https://www.smg-gh.com/product/heavy-duty-hydraulic-dump-truck-tipper-semi-trailer/#respond Wed, 19 Feb 2025 01:02:38 +0000 https://www.smg-gh.com/?post_type=product&p=1543 Overall dimension：12000mm * 2600mm *1800mm Volume : 45CBM Axles：6 axles]]>
Product Parameter (Specification)
Overall dimension： 12000mm * 2600mm *1800mm
Volume : 45CBM
Axles： 6 axles
Suspension： Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire： 24 units
King pin： 90#
Landing gear：  JOST
Brake system: WABCO
Electrical system:  24V, LED lights

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet
]]> https://www.smg-gh.com/product/heavy-duty-hydraulic-dump-truck-tipper-semi-trailer/feed/ 0 35 40CBM 3 Axles Rear Tipper Semi Trailer https://www.smg-gh.com/product/35-40cbm-3-axles-rear-tipper-semi-trailer/ https://www.smg-gh.com/product/35-40cbm-3-axles-rear-tipper-semi-trailer/#respond Tue, 18 Feb 2025 07:46:03 +0000 https://www.smg-gh.com/?post_type=product&p=1533 Dimension: 8500mmx2500mm x3950mm ( inside dimension ) Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel. Bottom Platform: 4 thick checkered plate Side wall thickness: 4mm]]>
Product Parameter
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam:  Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension:  Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin:  JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet
]]> https://www.smg-gh.com/product/35-40cbm-3-axles-rear-tipper-semi-trailer/feed/ 0 40CBM U-Shape Dump Tipping Trailer with Six Axles https://www.smg-gh.com/product/40cbm-u-shape-dump-tipping-trailer-with-six-axles/ https://www.smg-gh.com/product/40cbm-u-shape-dump-tipping-trailer-with-six-axles/#respond Tue, 18 Feb 2025 07:13:45 +0000 https://www.smg-gh.com/?post_type=product&p=1523 Overall Dimension(mm)： "Length×width×height: 12,010×2,530×3,650（The height will be adjusted according to the tractor specification）" Inner Dimension(mm) ：Length×width×height: 11,000x2,300x1,650 King Pin Setting(mm) ：1011mm from the face of front bloster Fifth Wheel Height(mm) ：The height will be adjusted according to the tractor specification]]>
Product Parameter (Specification)
Overall Dimension(mm) Length×width×height: 12,010×2,530×3,650 （The height will be adjusted according to the tractor specification）
Inner Dimension(mm) Length×width×height: 11,000×2,300×1,650
King Pin Setting(mm) 1011mm from the face of front bloster
Fifth Wheel Height(mm) The height will be adjusted according to the tractor specification
Tare Weight（kg） 14,500(+/- 5%)
Payload （kg） 70,000
Main Beam Submerged arc welding High-reinforced Steel,VICT700L
Rim 9.0-22.5, equip 19 pcs per chassis
Axle Goldcimc 13T，3 sets；FUWA 16T，3 sets ,without ABS
Hydraulic System HYVA FCA 214-5-08130 with all the high quality hydraulic kits, including the oil tanker, Valve, connecting pipe, but not provide the PTO.
Brake System Rear 3-axle Dual air brake system,30/30 type, WABCO brake valve
Spare Tire Carrier equip 2 set per chassis

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet
]]> https://www.smg-gh.com/product/40cbm-u-shape-dump-tipping-trailer-with-six-axles/feed/ 0 5 Axles U Type Heavy Duty Dump Tipper Semi Trailer With Air Suspensions https://www.smg-gh.com/product/5-axles-u-type-heavy-duty-dump-tipper-semi-trailer-with-air-suspensions/ https://www.smg-gh.com/product/5-axles-u-type-heavy-duty-dump-tipper-semi-trailer-with-air-suspensions/#respond Tue, 18 Feb 2025 06:48:23 +0000 https://www.smg-gh.com/?post_type=product&p=1513 Dimension(L*W*H): 11000*2650*3700 (mm) (Customized Sizes or Designed according to customers’ needs) Thickness: Side wall:6 mm; bottom floor:8 mm Payload (Kg): 40000 to 100000 Volume (CBM): 20 to 50 CBM]]>
Product Parameter (Specification)
Dimension(L*W*H): 11000*2650*3700 (mm) (Customized Sizes or Designed according to customers’ needs)
Thickness:  Side wall:6 mm; bottom floor:8 mm
Payload (Kg): 40000 to 100000
Volume (CBM): 20 to 50 CBM
Hydraulic system:  HYVA Brand
Kingpin: JOST 3.5”/2.5” bolt-in type
Landing gear: JOST 19”
Tires: 11R22.5 /12R22.5/11.00R20/12.00R20
Axle: FUWA/BPW/ZY or other Brands
Suspension:  Heavy duty mechanical suspension with springs/Air suspension/Bogie suspension
Brake system:  Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks
Electric system:  One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet

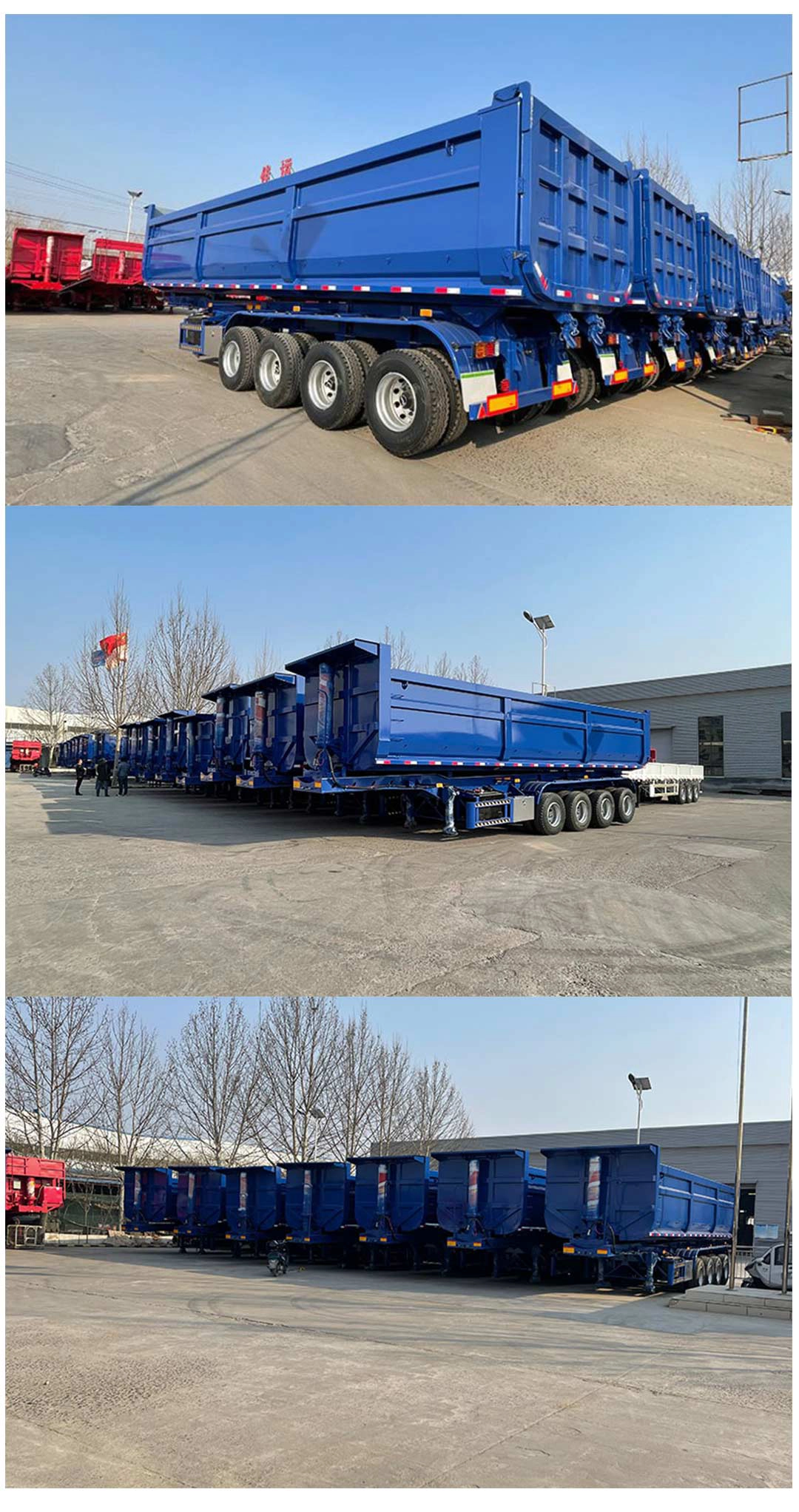

]]> https://www.smg-gh.com/product/5-axles-u-type-heavy-duty-dump-tipper-semi-trailer-with-air-suspensions/feed/ 0 4 Axles U Box 100T Rear Tipper Semi Trailer https://www.smg-gh.com/product/4-axles-u-box-100t-rear-tipper-semi-trailer/ https://www.smg-gh.com/product/4-axles-u-box-100t-rear-tipper-semi-trailer/#respond Tue, 18 Feb 2025 06:12:42 +0000 https://www.smg-gh.com/?post_type=product&p=1503 Dimension(L*W*H): 11500*2650*3800 (mm) (Customized Sizes or Designed according to customers’ needs) Thickness: Side wall:8 mm; bottom floor:8 mm Payload (Kg): 100000 Volume (CBM): 50 CBM]]>

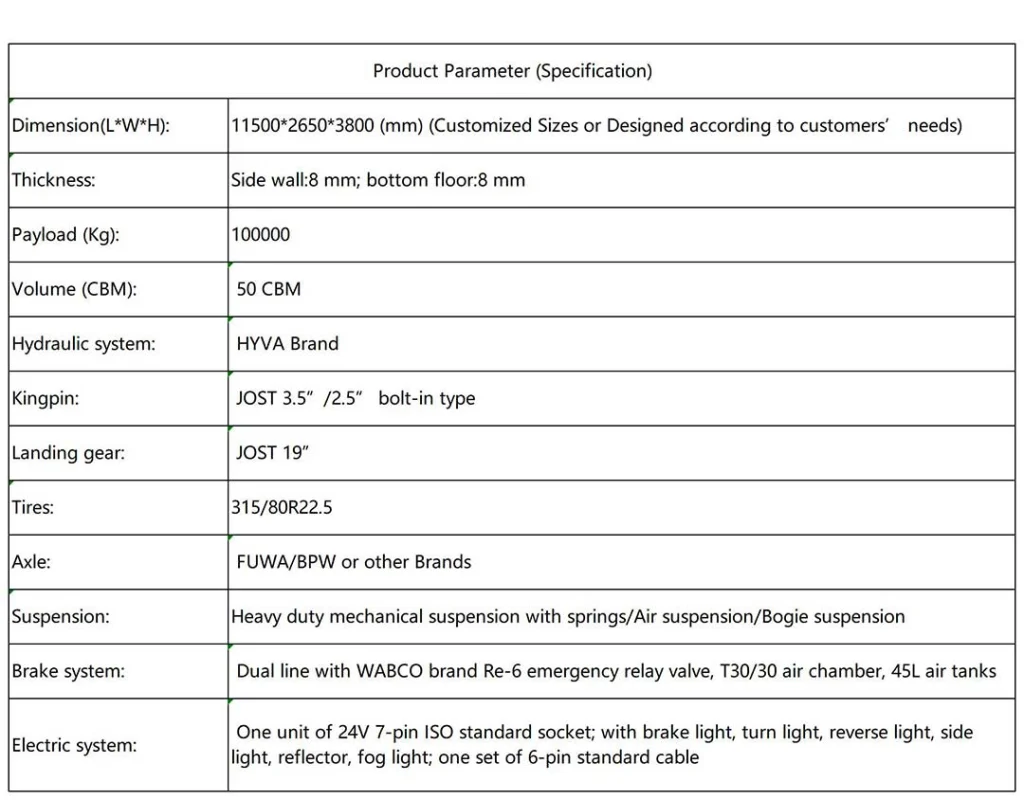

Product Parameter (Specification)
Dimension(L*W*H): 11500*2650*3800 (mm) (Customized Sizes or Designed according to customers’ needs)
Thickness: Side wall:8 mm; bottom floor:8 mm
Payload (Kg): 100000
Volume (CBM):  50 CBM
Hydraulic system:  HYVA Brand
Kingpin:  JOST 3.5”/2.5” bolt-in type
Landing gear:  JOST 19”
Tires: 315/80R22.5
Axle:  FUWA/BPW or other Brands
Suspension: Heavy duty mechanical suspension with springs/Air suspension/Bogie suspension
Brake system:  Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks
Electric system:  One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet
]]> https://www.smg-gh.com/product/4-axles-u-box-100t-rear-tipper-semi-trailer/feed/ 0 4 Axles 40CBM Rear Tipper Trailer https://www.smg-gh.com/product/4-axles-40cbm-rear-tipper-trailer/ https://www.smg-gh.com/product/4-axles-40cbm-rear-tipper-trailer/#respond Tue, 18 Feb 2025 05:50:13 +0000 https://www.smg-gh.com/?post_type=product&p=1495 Dimension(L*W*H): 10500*2650*3700 (mm) (Customized Sizes or Designed according to customers’ needs) Thickness: Side wall:8 mm; bottom floor:10 mm Payload (Kg): 80000 Volume (CBM): 45 CBM]]>
Product Parameters
Dimension(L*W*H): 10500*2650*3700 (mm) (Customized Sizes or Designed according to customers’ needs)
Thickness: Side wall: 8 mm;   bottom floor:10 mm
Payload (Kg): 80000
Volume (CBM): 45 CBM
Hydraulic system: HYVA Brand
Kingpin: JOST 3.5”/2.5” bolt-in type
Landing gear: JOST 19”
Tires:  11R22.5 /12R22.5/11.00R20/12.00R20
Axle: FUWA/BPW/ZY or other Brands
Suspension:  Heavy duty mechanical suspension with springs/Air suspension/Bogie suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks
Electric system:  One unit of 24V 7-pin ISO standard socket;   with brake light, turn light, reverse light, side light, reflector, fog light;   one set of 6-pin standard cable

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet
]]> https://www.smg-gh.com/product/4-axles-40cbm-rear-tipper-trailer/feed/ 0 3 Axles Crawler Dump Tipper Semi Trailer https://www.smg-gh.com/product/3-axles-crawler-dump-tipper-semi-trailer/ https://www.smg-gh.com/product/3-axles-crawler-dump-tipper-semi-trailer/#respond Tue, 18 Feb 2025 05:21:28 +0000 https://www.smg-gh.com/?post_type=product&p=1485 Working Box Space: 11500x2500x1800(mm) Working Volume: 35 m3 Loading Capacity: ≤ 50T Net Weight: 7.5-7.8T]]>
Product Parameter
Working Box Space:  11500x2500x1800(mm)
Working Volume:  35 m3
Loading Capacity: ≤ 50T
Net Weight: 7.5-7.8T
Box sidewall thickness:  2.5mm
Main Beam: Upper and lower plate is 10mm, Middle plate is 6mm
Bottom plate:  2.5mm thickness
Axles:  FUWA BRAND 13 T *3
Suspension:  Mechanical Heavy Duty Suspension
Leaf Spring:  10*90(W)*13mm(Thickness)
Landing Gear:  Aluminum type
Wheel Tire:  12R22.5  China brand
Wheel Rim:  9.00-22.5
Water Tank:  Aluminum
Hydraulic Tank:  Two pcs
Painting Color:  Any Color you can choose
Shipping Item:  By container frame, or bus deck container, bulk cargo or RORO ship

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet

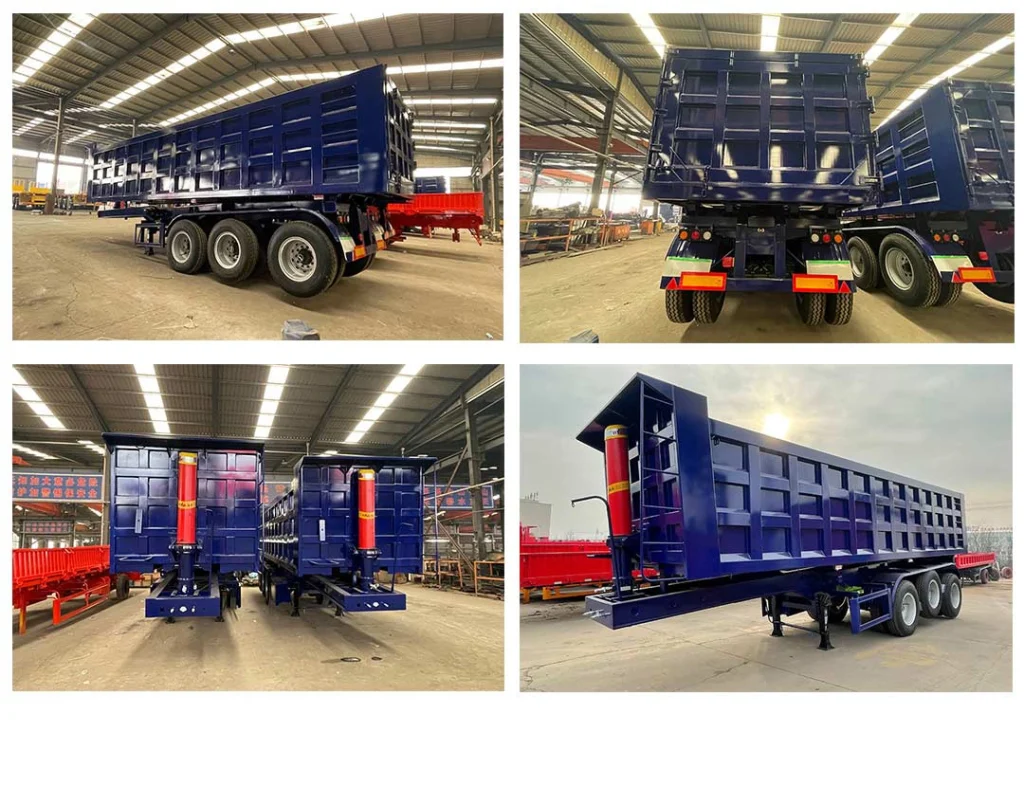

]]> https://www.smg-gh.com/product/3-axles-crawler-dump-tipper-semi-trailer/feed/ 0 3 Axles Bogie Suspension Rear Dump Tipper Semi trailer https://www.smg-gh.com/product/3-axles-bogie-suspension-rear-dump-tipper-semi-trailer/ https://www.smg-gh.com/product/3-axles-bogie-suspension-rear-dump-tipper-semi-trailer/#respond Tue, 18 Feb 2025 05:06:54 +0000 https://www.smg-gh.com/?post_type=product&p=1475 Dimension: 8500mmx2500mm x3950mm ( inside dimension ) Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel. Bottom Platform: 4 thick checkered plate]]>

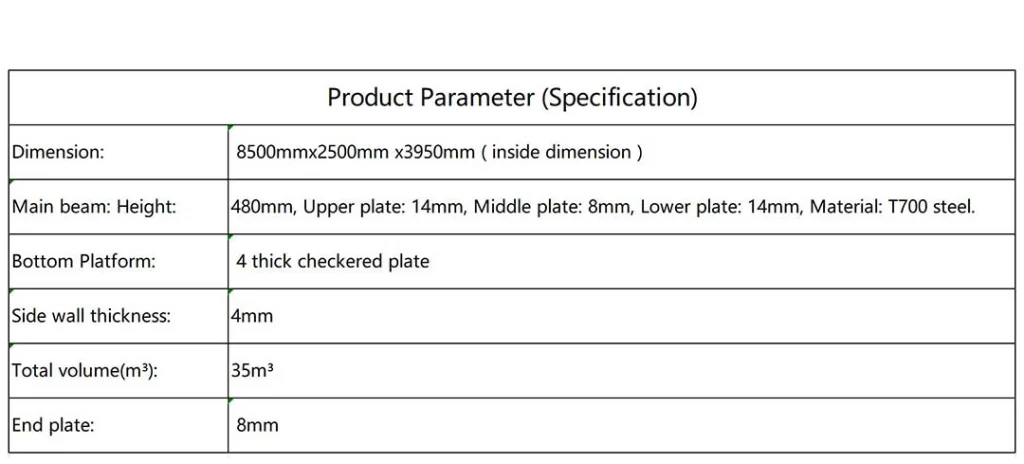

Product Parameter (Specification)
Dimension:  8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform:  4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate:  8mm

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet
]]> https://www.smg-gh.com/product/3-axles-bogie-suspension-rear-dump-tipper-semi-trailer/feed/ 0 2 Axles 30CBM End Tipper Dump Semi Trailer https://www.smg-gh.com/product/2-axles-30cbm-end-tipper-dump-semi-trailer/ https://www.smg-gh.com/product/2-axles-30cbm-end-tipper-dump-semi-trailer/#respond Tue, 18 Feb 2025 03:13:42 +0000 https://www.smg-gh.com/?post_type=product&p=1458
Product Parameters
Dimension(L*W*H):  7500*2500*3700 (mm) (Custom-built or Designed according to customers’ needs)
Thickness: Side wall: 6mm
bottom floor: 8mm
Payload (Kg): 60000
Volume (CBM): 20 to 50 CBM
Hydraulic system: HYVA Brand
Kingpin: JOST 3.5”/2.5” bolt-in type
Landing gear: JOST 19”
Tires:  11R22.5 /12R22.5/11.00R20/12.00R20
Axle: FUWA/BPW/ZY or other Brands
Suspension: Heavy Duty Mechanical Suspension with leaf springs/Air suspension/Bogie suspension
Brake system:  Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks
Electric system:  One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Technical sheet
