Special Liquid Tanker Trailer – SMG

Liquid Tanker Asphalt Bitumen Tank Truck Semi

smg — Fri, 21 Feb 2025 07:35:09 +0000

Product Parameter
Shape：	Optional (Round or Square)
Dimension：	11500mm2500mm3900mm (Exact size depends on the final design)
Tare weight：	About 10500KGS
Total Volume（m3）：	35 m³
Tanker Body Material ：	5mm Q235 carbon steel
End Plate：	5mm Q235 carbon steel
Manhole Cover：	Carbon steelφ500mm
Bottom Valve/Glass Wool：	Thickness is 50 or 80 mm
Heating pipe：	Four pieces in one row
Discharging Valve：	Diameter is 6 inches
Compartments：	1
Discharging Pipe：	4” rubber hose, 2 pcs, 6m/each
Main Beams：	Weldding design, Q345 carbon steel material
Axle：	3 axles, FUWA brand
Landing Gear：	CHINA BRAND 28T
King Pin：	JOST 3.5 inches bolt-in king pin
Suspension：	Mechanical suspension
Leaf Spring：	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System：	WABCO RE 6 relays valve; Spring braking chamber;
Rim：	9.00-22.5 China Brand
Tire ：	315 80R22.5 Brand can be Optional
ABS：	Optional

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Aluminum Alloy Gasoline Petrol Diesel Oil Mirror Insulated Tanker Fuel Tanker Trailer

smg — Fri, 21 Feb 2025 07:19:30 +0000

Product Parameter
Dimension(LWH):	9500-1300025003900 (mm) (Customized Sizes or Designed according to customers’ needs)
Compartments:	2 – 9 (Customizable)
Shape:	Elliptical, Square, Round (Customizable)
Valid Volume (L):	42000 (Customizable)
Body Steel Material:	6mm aluminum alloy 5182
End Plates:	6mm aluminum alloy 5182
Resistant Wave Plates:	5mm aluminum alloy 5182
Partition Chamber Plates:	5mm aluminum alloy 5182
Pneumatic Control system:	1set Pneumatic Control combined switch；1unit emergency switch
Discharging Pipe:	2 pcs, 6m/pc
Kingpin:	JOST 3.5”/2.5” bolt-in type
Landing gear:	JOST brand 19” Double-speed
Tires:	11R22.5 /12R22.5/315/85R22.5
Axle:	FUWA/BPW/ZY or other Brands
Suspension:	Mechanical suspension with springs/Air suspension/Bogie suspension
Brake system:	Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks
Electric system:	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

3 Axles Liquid Asphalt Heated Bitumen Transport Tanker Semi Trailer

smg — Fri, 21 Feb 2025 07:07:52 +0000

Product Parameter
Items:	Fuel/Oil tank trailer QUEST9402GYYA
Loading Capacity:	30-50 cbm
Axle:	3 pieces, 13T FUWA/BPW axle
Tyre:	12 pieces, 12R22.5
Dimensions(LxWxH):	9000 to 13000mm x 3000 x 3700mm
Tare weight:	9 tons to 11 tons
Axle spacing:	1310mm
Rims:	8.5-20, 9.0-20
Suspension System:	Leaf spring suspension / air suspension
Brake System:	Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam:	Height 500mm Q345
Chassis:	upper 20mm, lower 20mm. Mid web 12mm
Compartment:	Single or 2/4/optional
Fire Extinguisher:	2 pieces
Related Valves:	One whole set of valves
Kingpin:	2′ or 3.5′ interchangeable
Landing Gear:	28 Tons , Two speed manual operation
Electrical System:1.Voltage:	24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors:	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting:	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box:	One tool box with a set of standard trailer tools
Spare Tyre Carrier:	One piece or two pieces

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

3 axles 25000L 35 Ton Capacity Chemical Liquid Sulfuric Acid Tanker Semi Trailer

smg — Fri, 21 Feb 2025 03:21:54 +0000

Product Parameter
Front/Rear end plate :	6mm Q235 carbon steel
Tank body:	5mmQ235 carbon steel
Compartment :	1-10 optional
Diameter :	500mm
Discharging valve :	3 inch API standard
Wave-proof plate thickness:	4mm
Bottom safety valve :	4 inch
Discharging pipe :	Diameter 3 inch Rubber hose,2pcs
Walkway :	Standard
Axle :	Fuwa Brand 13ton 3pcs
Rim :	9.0-22.5 12 pcs
Tyre :	Tri-angle brand 295/80R22.5 12pcs
Suspension :	Mechanical suspension
Spring leaf :	90mm13mm10 Layer
King pin :	Bolts type2 inch
Air tank :	40L air tanks
Brake chamber：	6 double spring brake chamber
ABS ：	(4S/2M optional)
Landing gear ：	JOST/SAF brand 28t two speed
Spare tire carrier ：	One
Light ：	LED light
Electric：	7 ways(7wire harness)and quick change type ,24Voltage
Tool box ：	One piece,1000x500x500mm
Paiting ：	Polyurethane paint&anti-rust primer&sand blasting
Tools for trailer ：	Head wrech ;spare wheel crank ; one fire extinguisher; Operation Manual

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

3 axle 45000 liters Palm Crude Oil Tank tanker Semi Trailer with Pump

smg — Fri, 21 Feb 2025 03:04:46 +0000

Product Parameters
Shape:	Elliptical, circular type shape
Payload:	28T – 70tons
Volume:	28000liter – 70000liter
Compartments:	1-9
Tanker body:	5mm
Manhole:	2 – 9 pcs 16″, 20″ with vent valve
Discharge vale	:4″ API Adaptor Valve or 3″ Spherical Valve
Bottom valve:	3″, 4″ Contral by Pneumatic Block
Handrail:	Manual, Pneumatic
Bottom Loading (Optional):	Overfilling, Recovery system
Walk:	Aluminum
Main Beam:	Q345 Carbon steel material
Axles:	2 – 4 pcs 13 – 20tons BPW or Fuwa Axles
Suspenssion:	Mechanical, Air, Bogie
Landing Leg:	JOST E100
Brake system:	6pcs T30/30 Brake Chambers, WABCO relay valve
Tire:	12R22.5, 315/80R22.5, 12.00R24 Triangle Brand
King Pin：	JOST 2″ or 3.5 ” Bolting Type

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Vertical powder material transport semi-trailer

smg — Mon, 13 Jan 2025 08:15:50 +0000

Product Model	Overall Dimensions（mm）	Curb Weight（kg）	Wheelbase（mm）	m³	Transport Medium
HNV940IGFL36	900025304000	6800/7000	4600+1310+1310	36	Cement, Sand
HNV940IGFL61	1250025504000	7300/7700/8000	8450+1310+1310	61	Flour

◆1. The tank body is made of high-strength steel (stainless steel meets food-grade requirements), and the overall vehicle performance is superior.

◆2. The entire vehicle adopts a lightweight design, resulting in a lower curb weight of the tank truck, a higher payload, and better operational economic benefits.

◆3. The entire vehicle is designed using three-dimensional software, featuring a reasonable body structure, balanced front and rear loads, smooth driving, and minimal bouncing.

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Tank transport semi-trailer for corrosive materials

smg — Mon, 13 Jan 2025 08:14:46 +0000

Product Model	Overall Dimensions（mm）	Curb Weight（kg）	Wheelbase（mm）	m³	Design Code
HNV9400GFW20	1010025503500	5900/6200/6450	4800+1310+1310	19.9	L4BH
HNV9400GFW28	1030025503650	6300/6300/6500	4800+1310+1310	28	L4BH

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Stainless steel ordinary liquid tank transporter

smg — Mon, 13 Jan 2025 08:13:24 +0000

Product Model	Overall Dimensions（mm）	Curb Weight（kg）	m³	Medium
HNV9400GPG35	965025503600	5950/6200/6500	35	Ordinary liquid

Product Model	Overall Dimensions（mm）	Curb Weight（kg）	m³	Medium
HNV9400GPG40/42	1070025503700	6900/7100/7400	40/42	Ordinary liquid

◆1. The tank body adopts a large-drop variable cross-section design, effectively lowering the center of gravity of the tank truck and enhancing stability.

◆2. With an elliptical cross-section, the tank body is shorter for the same volume, resulting in a lighter curb weight.

◆3. The groundbreaking design of the front beam of the tank body improves the stress condition at the traction pin support.

◆4. Manufacturing processes and inspection procedures are referenced against the requirements for hazardous material hammers, significantly improving the quality and safety of the tank truck.

◆5. The tank truck uses Dacromet bolts, which are resistant to rust in harsh conditions.

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

Stainless steel non-insulated flammable liquid transport vehicle

smg — Mon, 13 Jan 2025 08:12:24 +0000

Product Model	Overall Dimensions（mm）	Curb Weight（kg）	m³	Design Code
HNV940028GRY48	1205025503900	7000/7300/7500	48	L4BH

More information about this equipment?

Download the technical sheet, and contact us for a quotation.

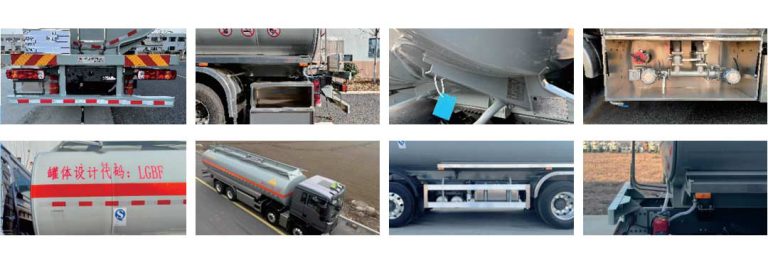

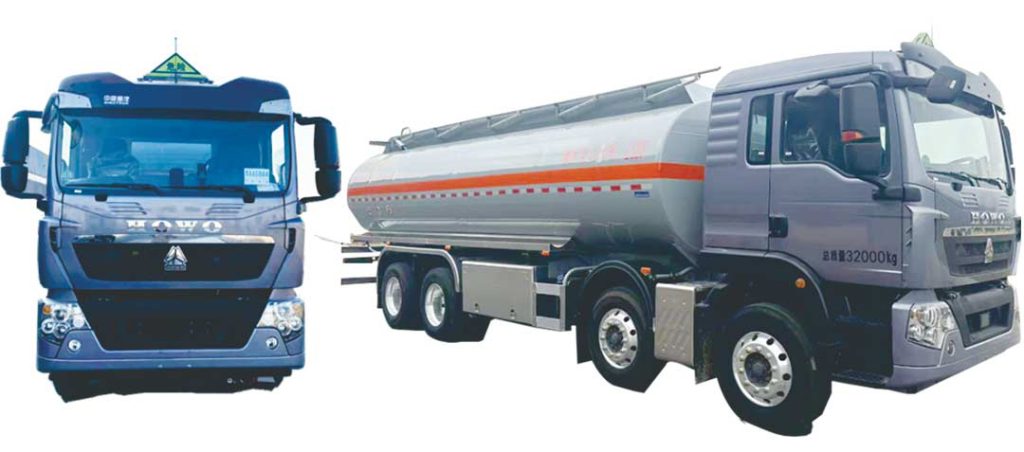

Stainless steel flammable liquid tank transporter

smg — Mon, 13 Jan 2025 08:11:29 +0000

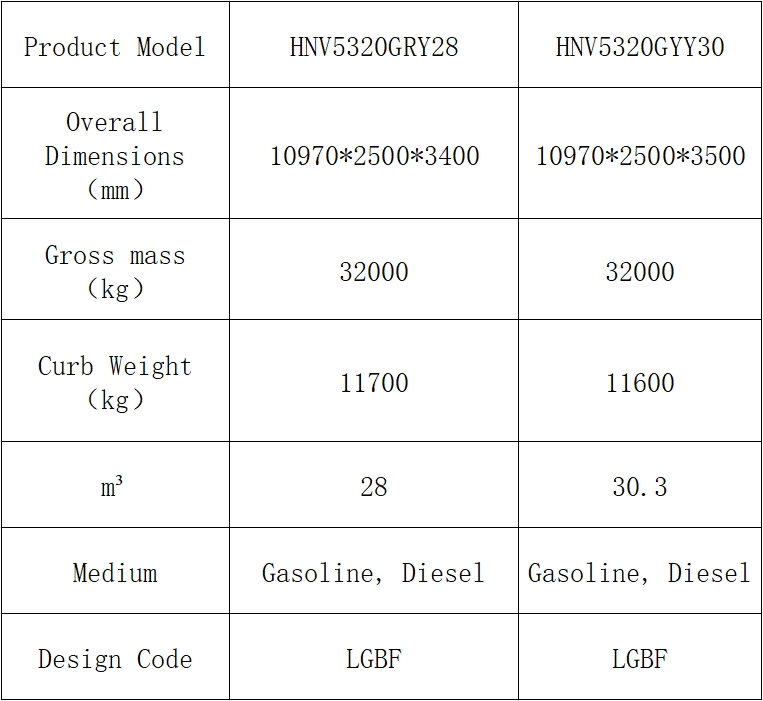

Product Model	Overall Dimensions（mm）	Gross mass（kg）	Curb Weight（kg）	m³	Medium	Design Code
HNV5320GRY28	1097025003400	32000	11700	28	Gasoline, Diesel	LGBF
HNV5320GYY30	1097025003500	32000	11600	30.3	Gasoline, Diesel	LGBF

More information about this equipment?

Download the technical sheet, and contact us for a quotation.
