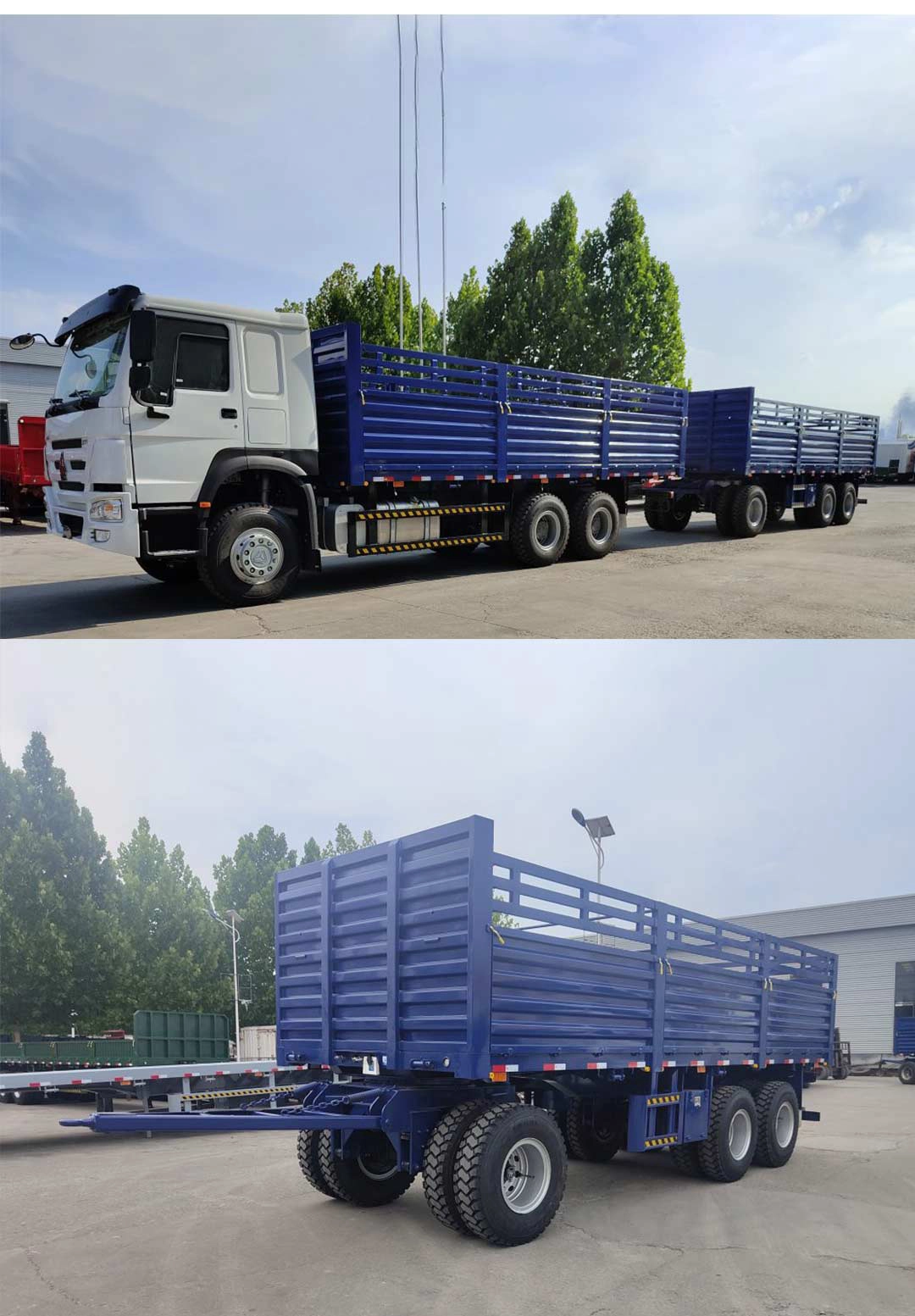

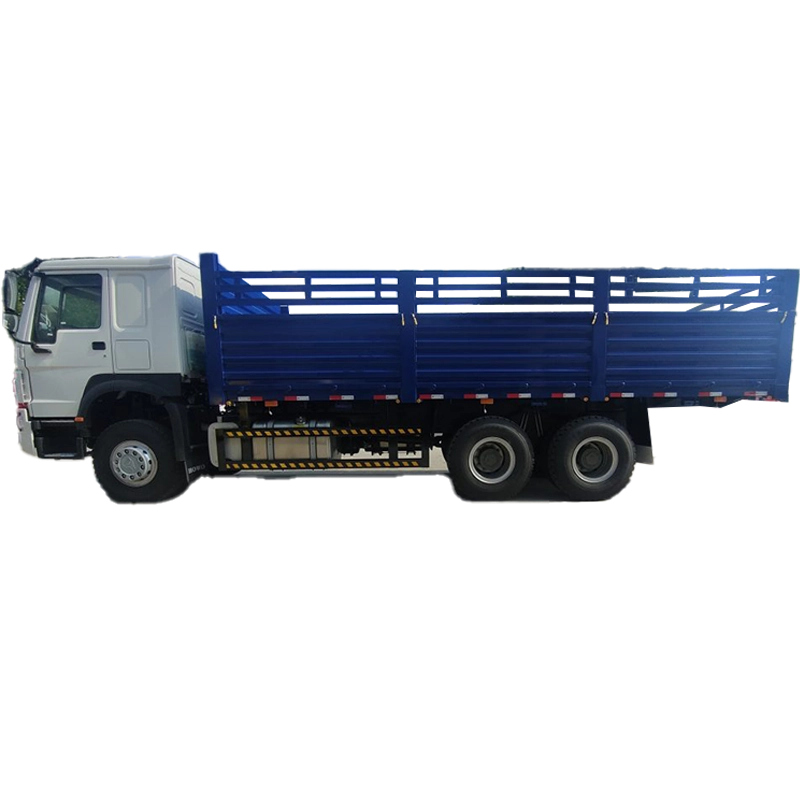

10 Wheels Fence Cargo Truck with Dolly Trailer
Specification
Model: ZZ1257N4347B1
Made Year: Brand New,
Wheelbase: 4300+1400mm
Cabin: HW76, one single sleeper, with air conditioner
Facebook
Twitter
LinkedIn
Parameter

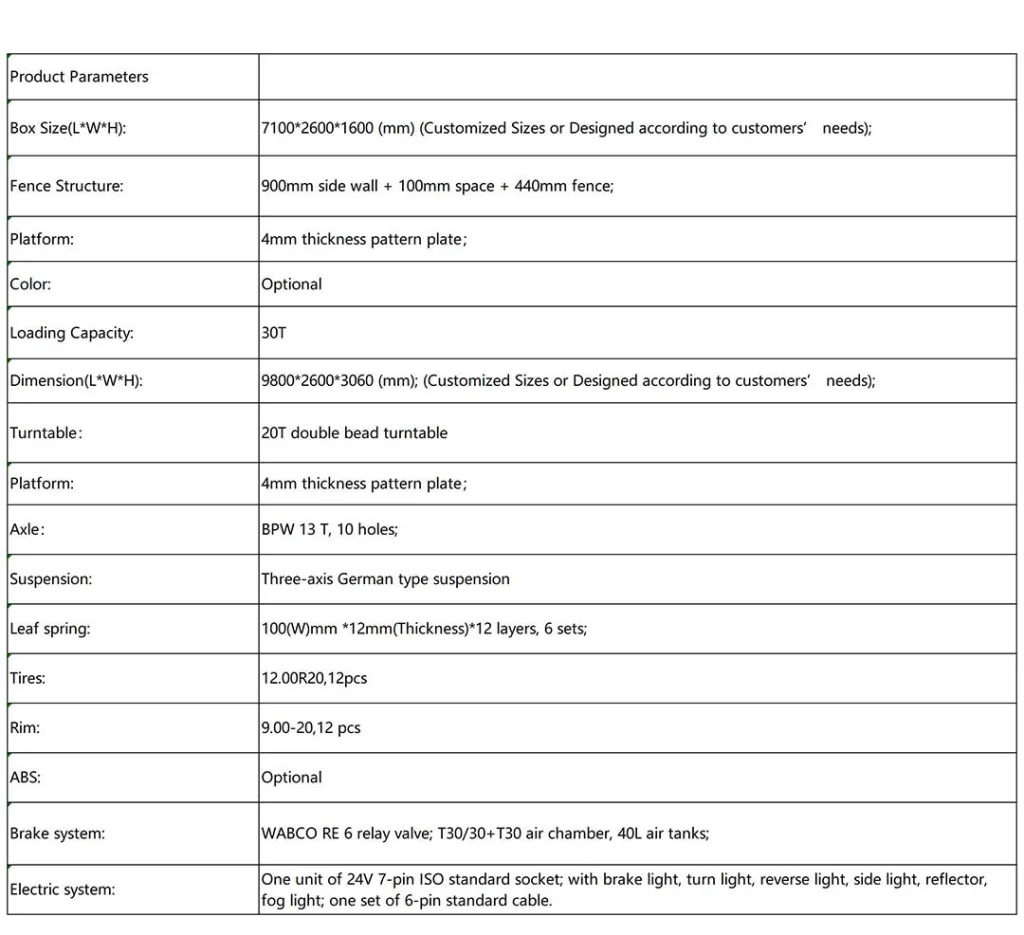

| Product Parameters | |
| Box Size(L*W*H): | 7100*2600*1600 (mm) (Customized Sizes or Designed according to customers’ needs); |
| Fence Structure: | 900mm side wall + 100mm space + 440mm fence; |
| Platform: | 4mm thickness pattern plate； |
| Color: | Optional |
| Loading Capacity: | 30T |
| Dimension(L*W*H): | 9800*2600*3060 (mm); (Customized Sizes or Designed according to customers’ needs); |
| Turntable： | 20T double bead turntable |
| Platform: | 4mm thickness pattern plate； |
| Axle： | BPW 13 T, 10 holes; |
| Suspension: | Three-axis German type suspension |
| Leaf spring: | 100(W)mm *12mm(Thickness)*12 layers, 6 sets; |
| Tires: | 12.00R20,12pcs |
| Rim: | 9.00-20,12 pcs |
| ABS: | Optional |
| Brake system: | WABCO RE 6 relay valve; T30/30+T30 air chamber, 40L air tanks; |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable. |
More information about this equipment?
Download the technical sheet, and contact us for a quotation.
