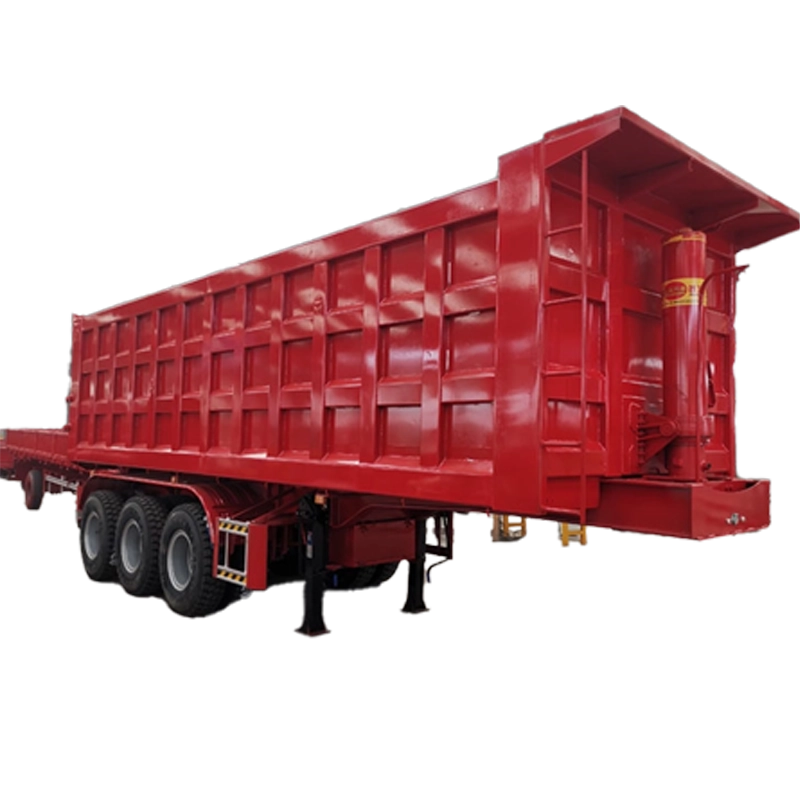

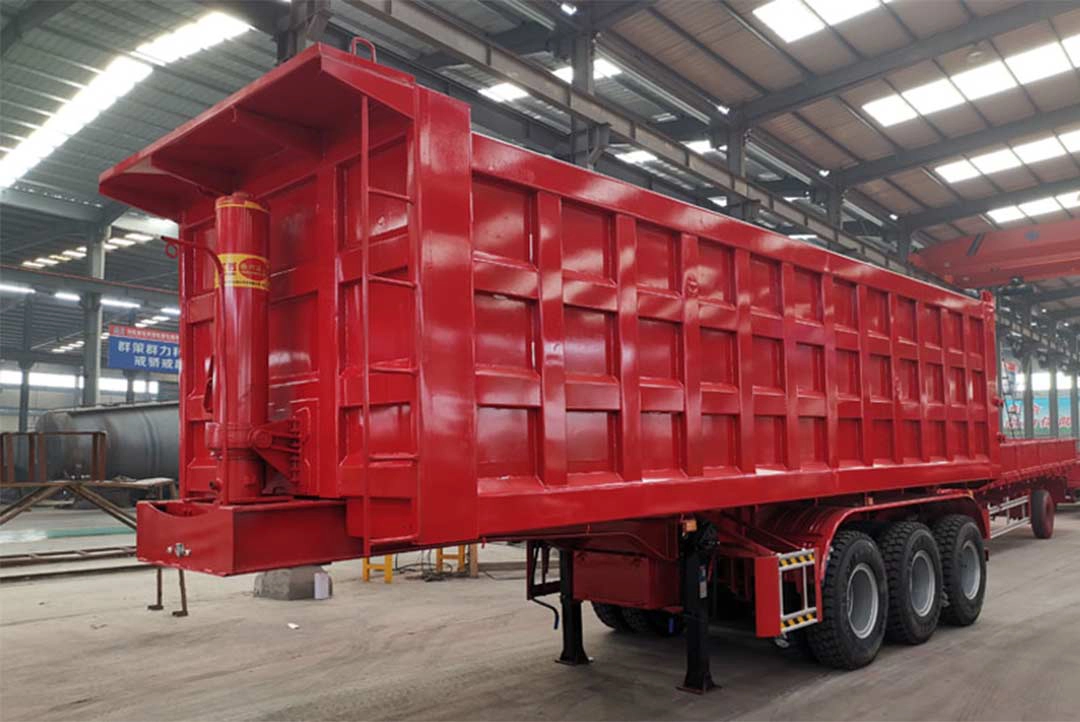

35 40CBM 3 Axles Rear Tipper Semi Trailer
Specification
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Facebook
Twitter
LinkedIn
Parameter

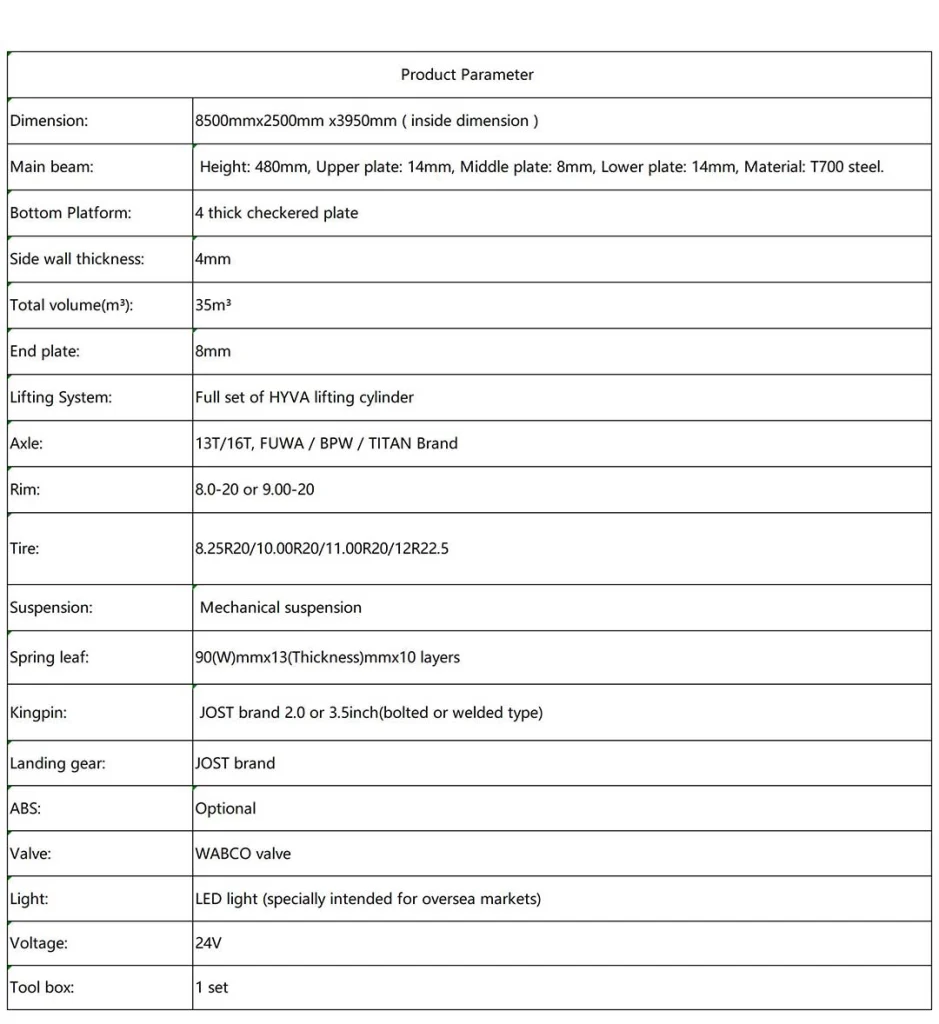

| Product Parameter | |
| Dimension: | 8500mmx2500mm x3950mm ( inside dimension ) |
| Main beam: | Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel. |
| Bottom Platform: | 4 thick checkered plate |
| Side wall thickness: | 4mm |
| Total volume(m³): | 35m³ |
| End plate: | 8mm |
| Lifting System: | Full set of HYVA lifting cylinder |
| Axle: | 13T/16T, FUWA / BPW / TITAN Brand |
| Rim: | 8.0-20 or 9.00-20 |
| Tire: | 8.25R20/10.00R20/11.00R20/12R22.5 |
| Suspension: | Mechanical suspension |
| Spring leaf: | 90(W)mmx13(Thickness)mmx10 layers |
| Kingpin: | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Landing gear: | JOST brand |
| ABS: | Optional |
| Valve: | WABCO valve |
| Light: | LED light (specially intended for oversea markets) |
| Voltage: | 24V |
| Tool box: | 1 set |
More information about this equipment?
Download the technical sheet, and contact us for a quotation.
