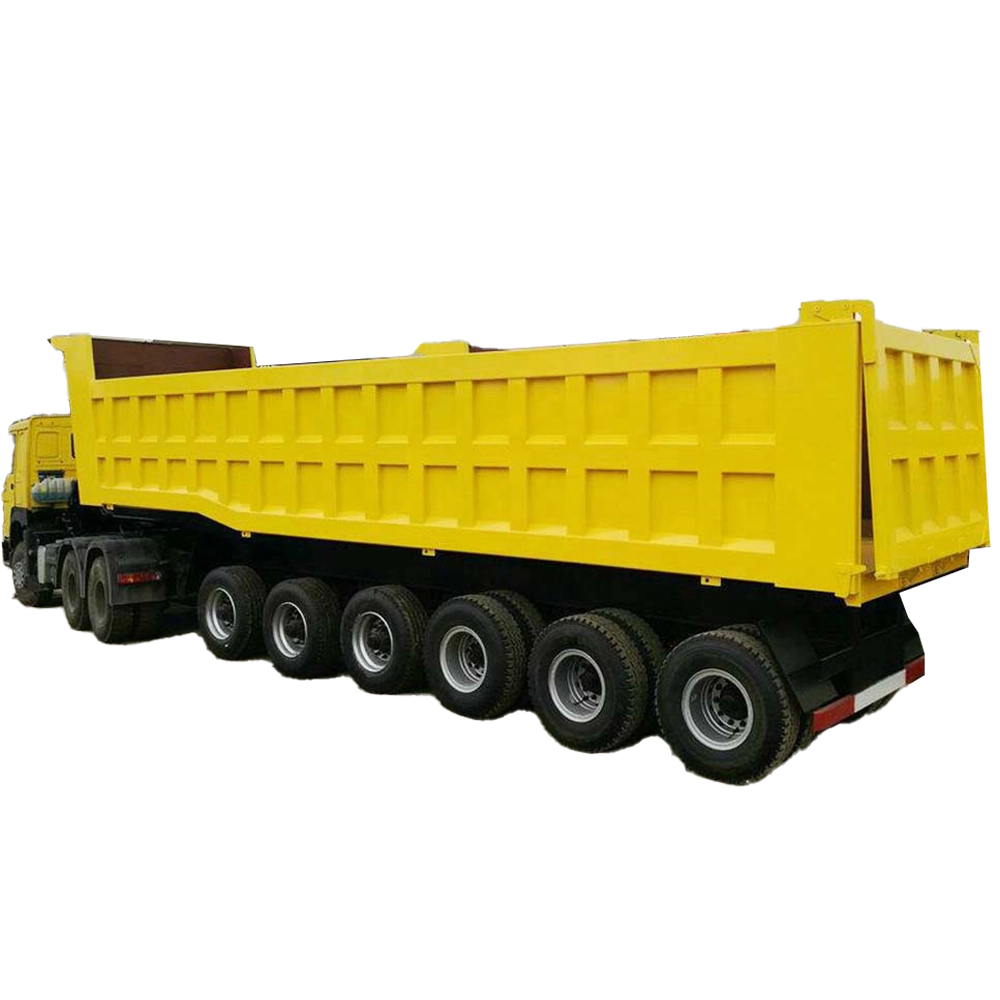

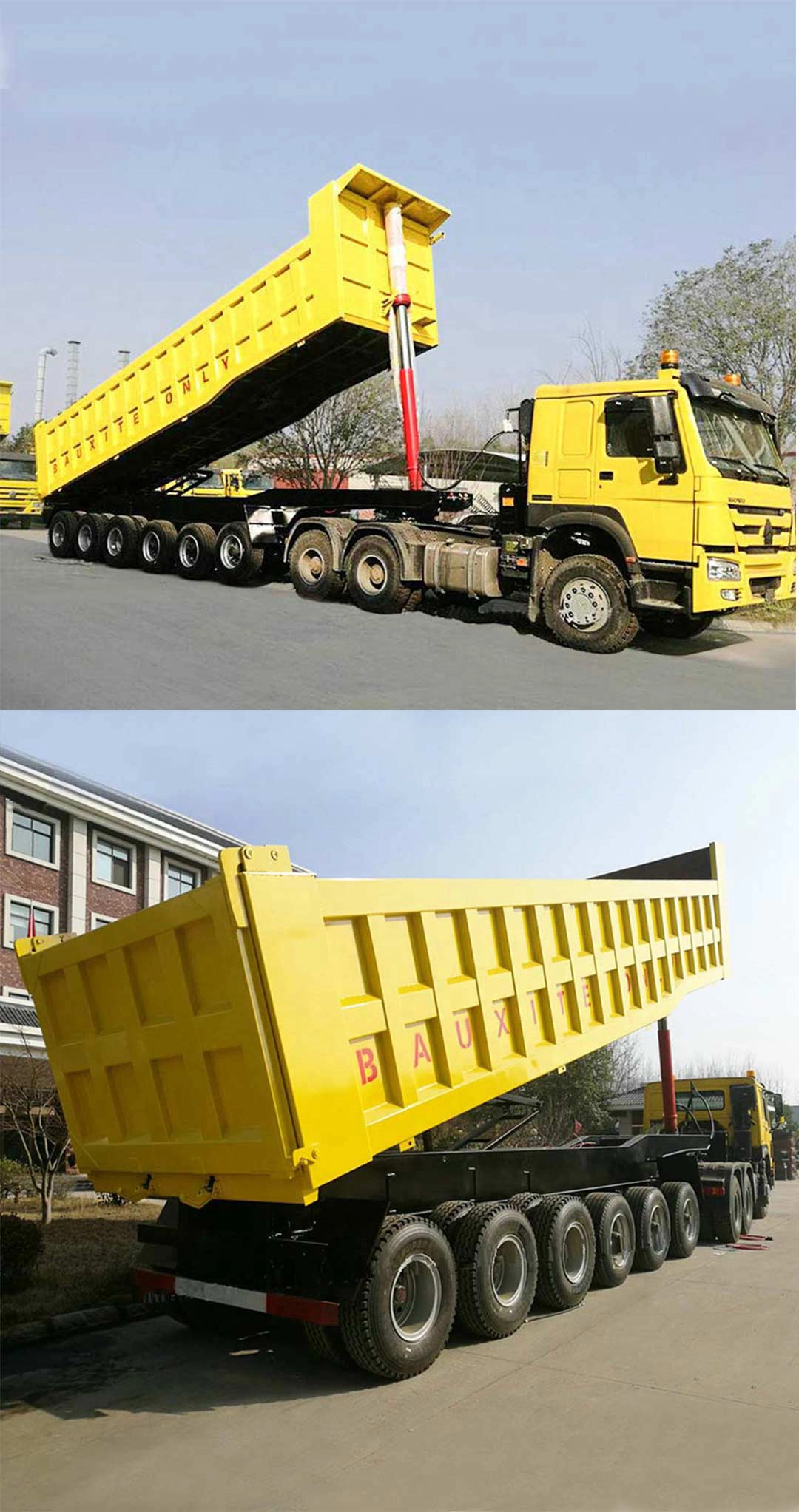

40CBM U-Shape Dump Tipping Trailer with Six Axles
Specification
Overall Dimension(mm)： “Length×width×height: 12,010×2,530×3,650（The height will be adjusted according to the tractor specification）”
Inner Dimension(mm) ：Length×width×height: 11,000×2,300×1,650
King Pin Setting(mm) ：1011mm from the face of front bloster
Fifth Wheel Height(mm) ：The height will be adjusted according to the tractor specification
Facebook
Twitter
LinkedIn
Parameter

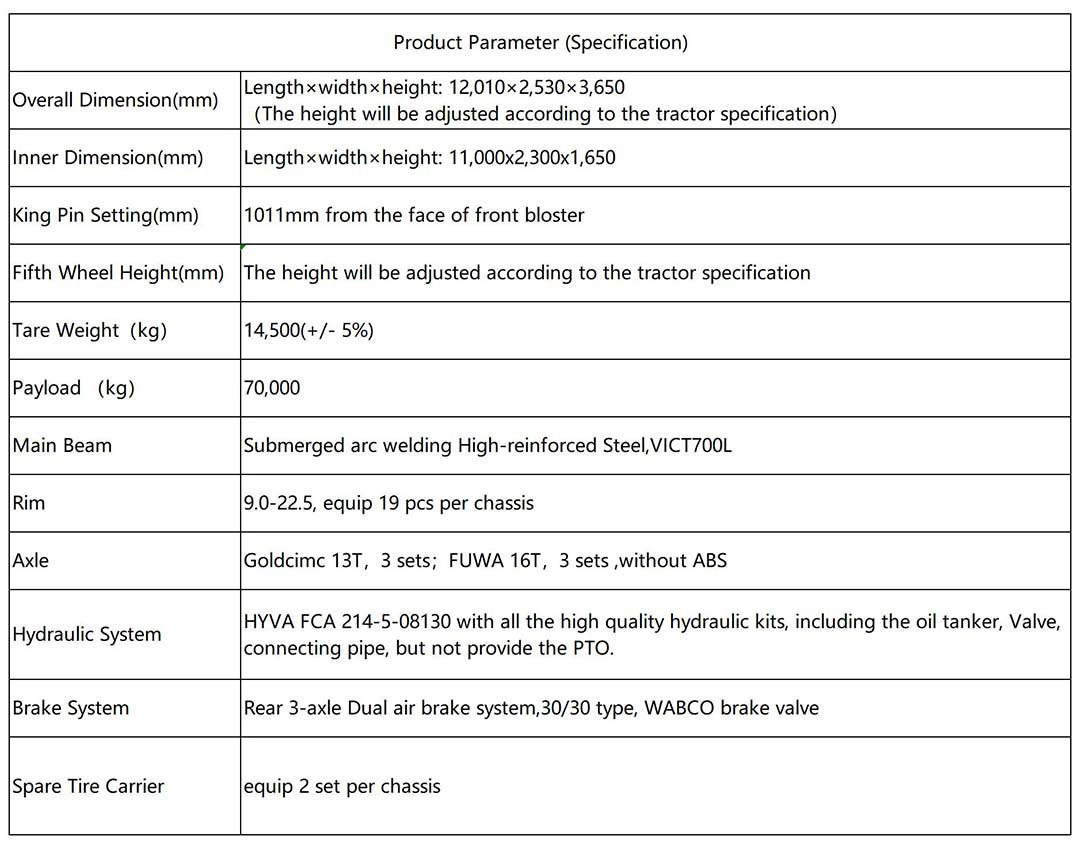

| Product Parameter (Specification) | |
| Overall Dimension(mm) | Length×width×height: 12,010×2,530×3,650 （The height will be adjusted according to the tractor specification） |
| Inner Dimension(mm) | Length×width×height: 11,000×2,300×1,650 |
| King Pin Setting(mm) | 1011mm from the face of front bloster |
| Fifth Wheel Height(mm) | The height will be adjusted according to the tractor specification |
| Tare Weight（kg） | 14,500(+/- 5%) |
| Payload （kg） | 70,000 |
| Main Beam | Submerged arc welding High-reinforced Steel,VICT700L |
| Rim | 9.0-22.5, equip 19 pcs per chassis |
| Axle | Goldcimc 13T，3 sets；FUWA 16T，3 sets ,without ABS |
| Hydraulic System | HYVA FCA 214-5-08130 with all the high quality hydraulic kits, including the oil tanker, Valve, connecting pipe, but not provide the PTO. |
| Brake System | Rear 3-axle Dual air brake system,30/30 type, WABCO brake valve |
| Spare Tire Carrier | equip 2 set per chassis |
