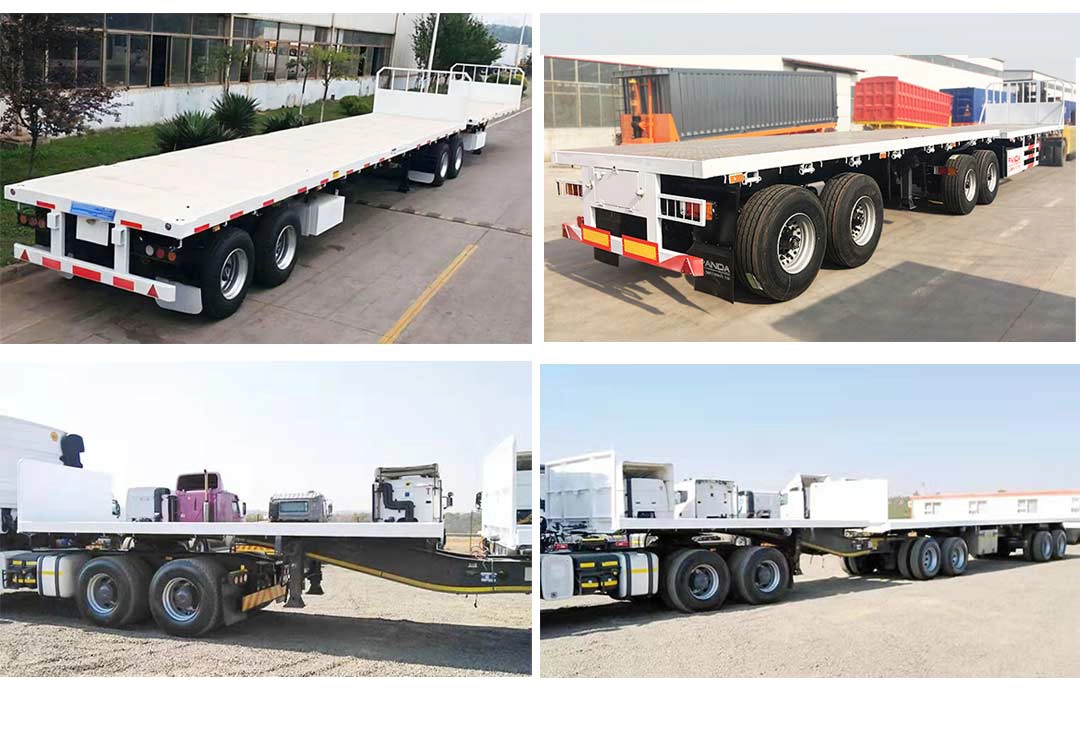

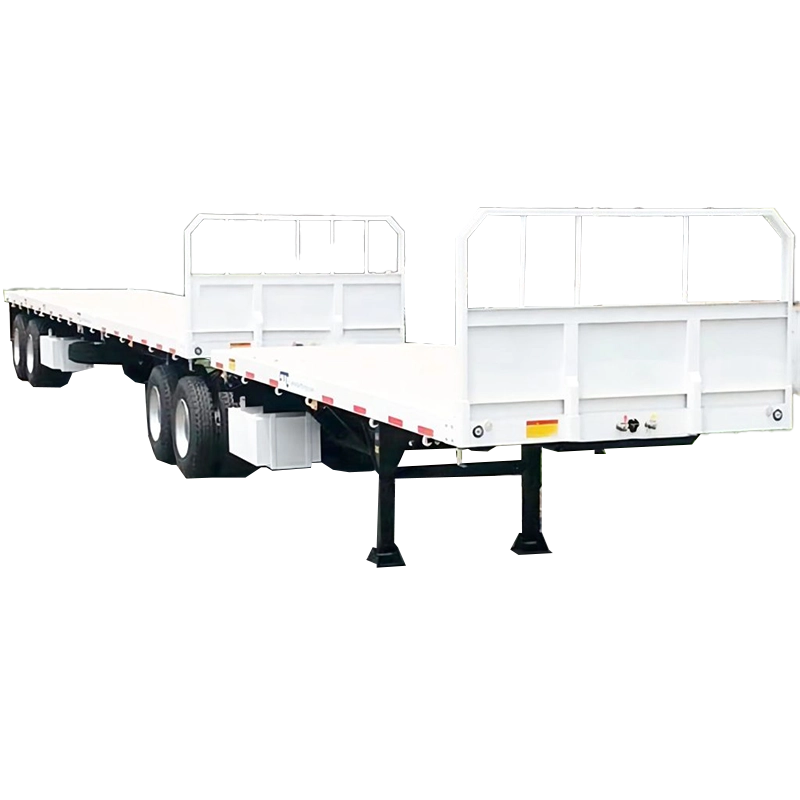

Flatbed Container Semi Trailer
Specification
Tare Weight: about 7.2 T;
Payload: 60 T;
Dimension (L*W*H): 13750mm*2500mm*1500mm;
Main beam: 500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness;
Facebook
Twitter
LinkedIn
Parameter

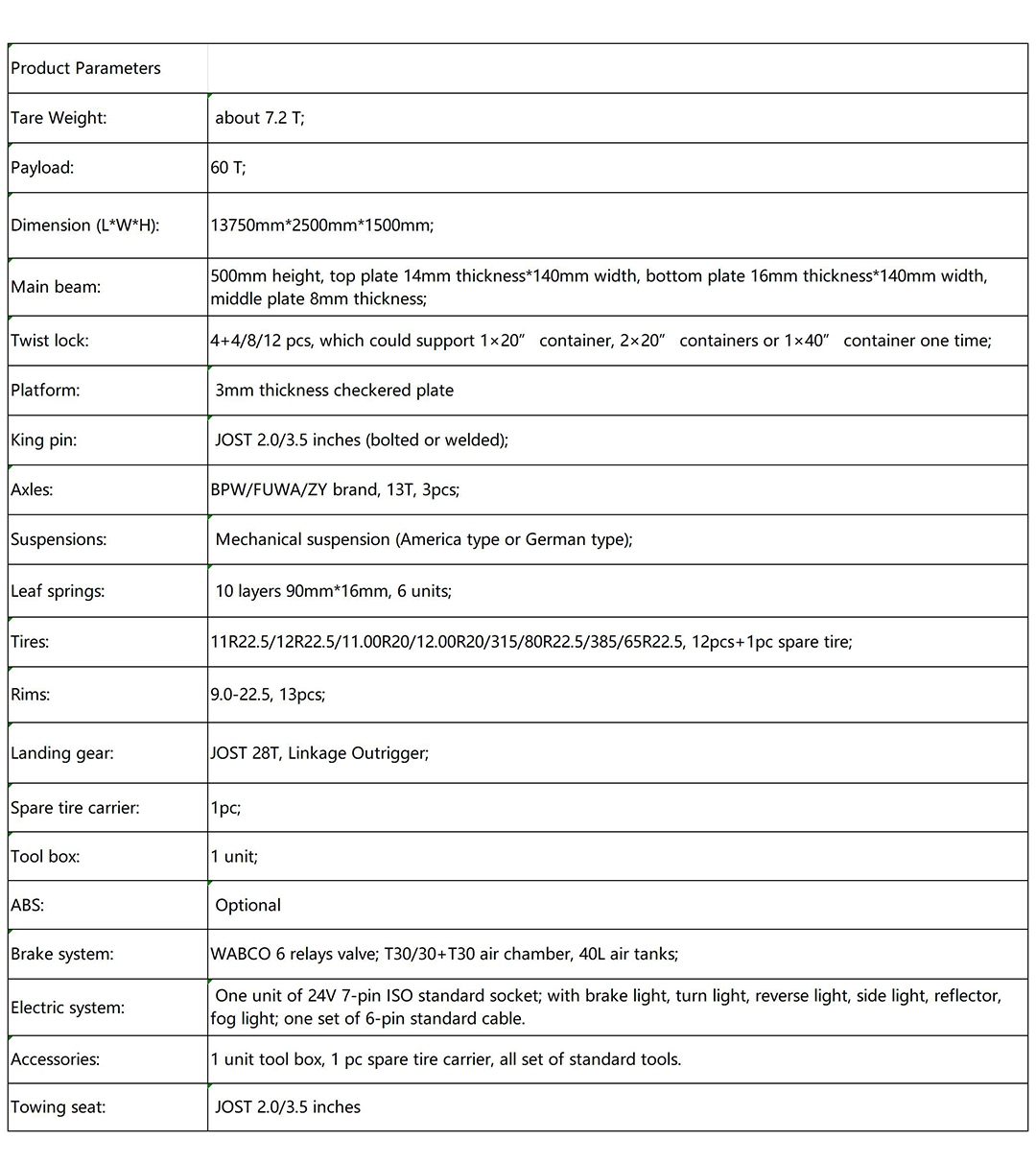

| Product Parameters | |
| Tare Weight: | about 7.2 T; |
| Payload: | 60 T; |
| Dimension (L*W*H): | 13750mm*2500mm*1500mm; |
| Main beam: | 500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness; |
| Twist lock: | 4+4/8/12 pcs, which could support 1×20” container, 2×20” containers or 1×40” container one time; |
| Platform: | 3mm thickness checkered plate |
| King pin: | JOST 2.0/3.5 inches (bolted or welded); |
| Axles: | BPW/FUWA/ZY brand, 13T, 3pcs; |
| Suspensions: | Mechanical suspension (America type or German type); |
| Leaf springs: | 10 layers 90mm*16mm, 6 units; |
| Tires: | 11R22.5/12R22.5/11.00R20/12.00R20/315/80R22.5/385/65R22.5, 12pcs+1pc spare tire; |
| Rims: | 9.0-22.5, 13pcs; |
| Landing gear: | JOST 28T, Linkage Outrigger; |
| Spare tire carrier: | 1pc; |
| Tool box: | 1 unit; |
| ABS: | Optional |
| Brake system: | WABCO 6 relays valve; T30/30+T30 air chamber, 40L air tanks; |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable. |
| Accessories: | 1 unit tool box, 1 pc spare tire carrier, all set of standard tools. |
| Towing seat: | JOST 2.0/3.5 inches |
