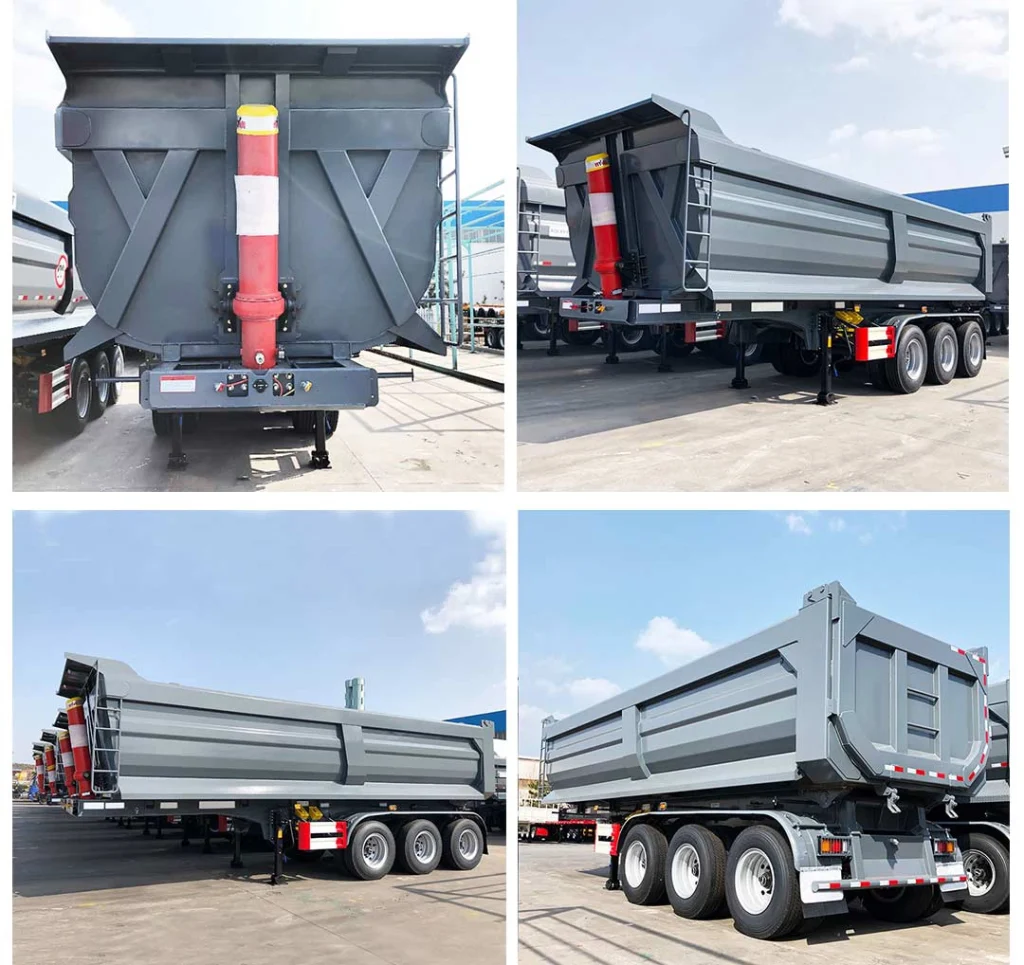

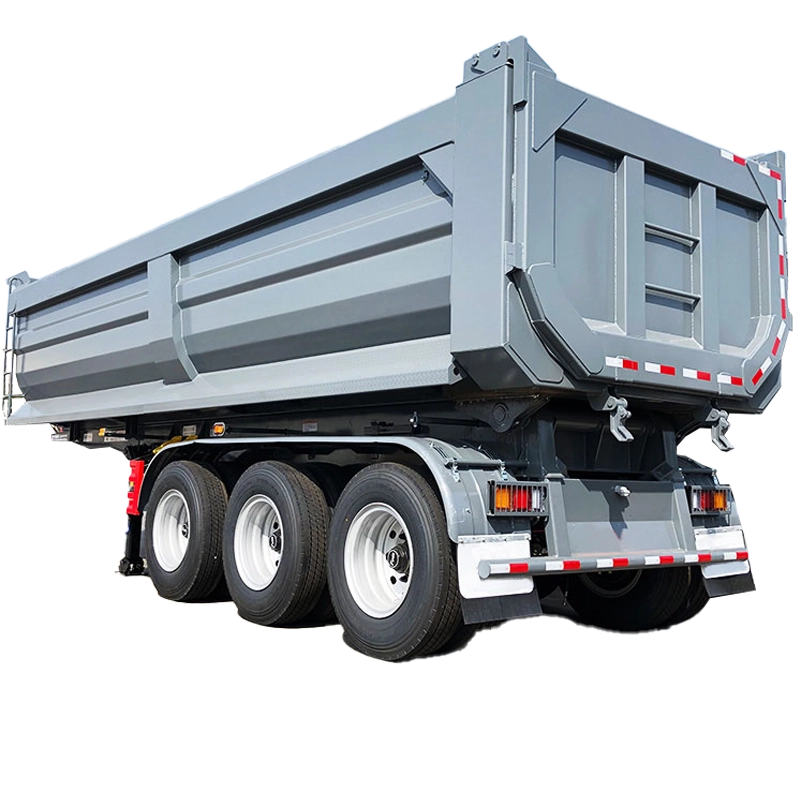

Tri Axles U Box Rear Dump Tipper Semi Trailer
Specification
Dimension(L*W*H): 10000*2650*3700 (mm) (Customized Sizes or Designed according to customers’ needs)
Thickness: Side wall: 6 mm; bottom floor:8 mm
Payload (Kg): 80000
Volume (CBM): 40 CBM
Facebook
Twitter
LinkedIn

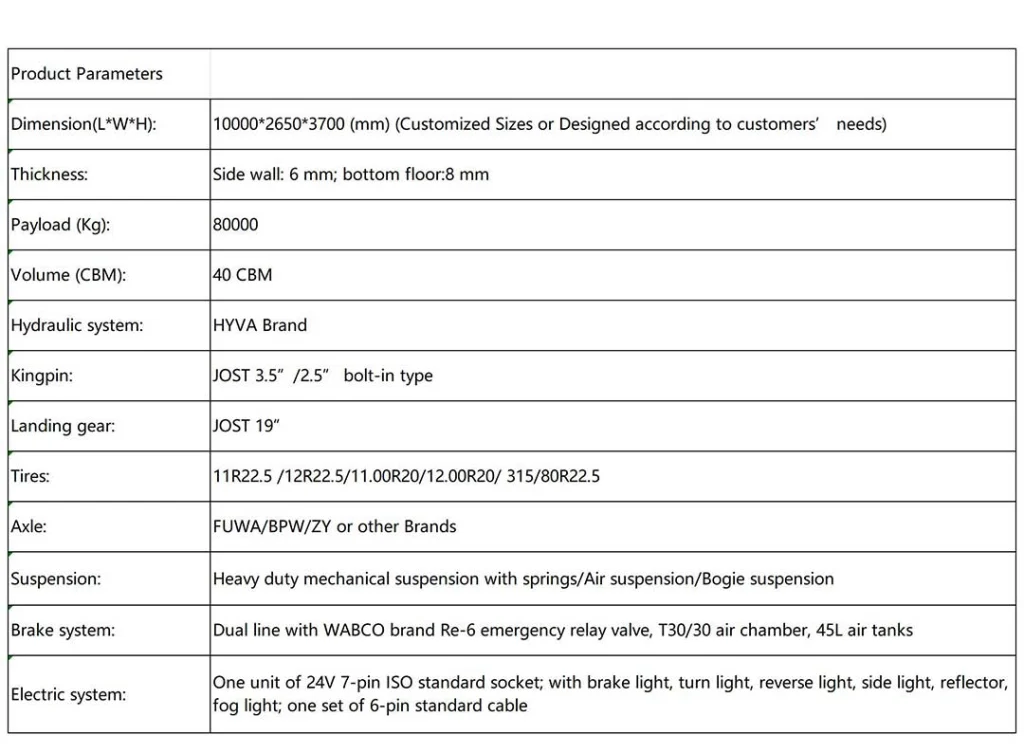

Parameter
| Product Parameters | |
| Dimension(L*W*H): | 10000*2650*3700 (mm) (Customized Sizes or Designed according to customers’ needs) |
| Thickness: | Side wall: 6 mm; bottom floor:8 mm |
| Payload (Kg): | 80000 |
| Volume (CBM): | 40 CBM |
| Hydraulic system: | HYVA Brand |
| Kingpin: | JOST 3.5”/2.5” bolt-in type |
| Landing gear: | JOST 19” |
| Tires: | 11R22.5 /12R22.5/11.00R20/12.00R20/ 315/80R22.5 |
| Axle: | FUWA/BPW/ZY or other Brands |
| Suspension: | Heavy duty mechanical suspension with springs/Air suspension/Bogie suspension |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
More information about this equipment?
Download the technical sheet, and contact us for a quotation.
