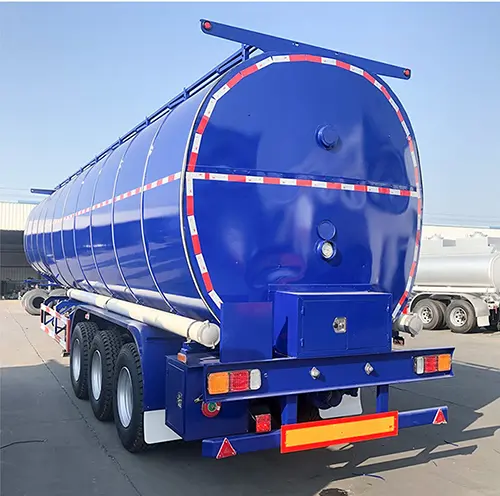

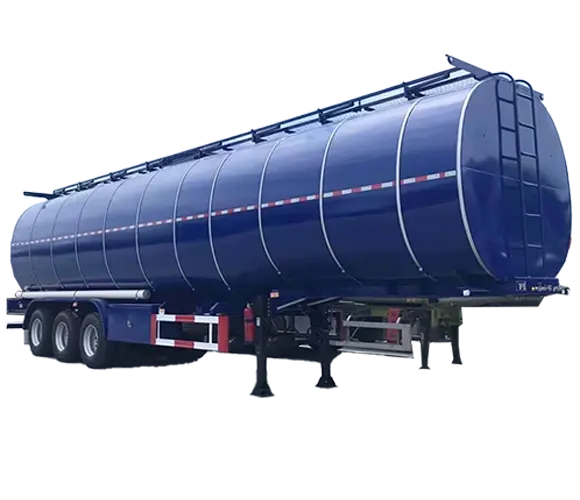

3 Axle 45000 Liters Crude Palm Oil Tanker Semi Trailer with Pump
3 axle 45000L crude palm oil tanker semi trailer equipped with pump, elliptical / round tank shape, optional compartments from 1 to 9. BPW / Fuwa axles available, mechanical / air / bogie suspension, WABCO brake system, bottom loading & vapor recovery system optional, for liquid oil transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 3 Axle 45000 Liters Crude Palm Oil Tanker Semi Trailer with Pump is a professional liquid transport semi-trailer, mainly for crude palm oil and other liquid cargo. The tank can be elliptical or circular, standard volume 45000L, customizable range from 28000L to 70000L with payload from 28 tons to 70 tons. It can be divided into 1–9 independent compartments for separate loading of different liquids.
The tank shell is 5mm thick. It is fitted with 16”/20” manholes with vent valves, API adaptor valve or spherical discharge valve and pneumatic bottom valve. Aluminum anti-slip walkway and handrail (manual or pneumatic) are equipped for safe operation. Bottom loading, overfill protection and vapor recovery system are optional.
The chassis adopts Q345 carbon steel main beam, BPW or Fuwa heavy-duty axles, optional mechanical / air / bogie suspension, JOST E100 landing leg, WABCO relay valve brake system with T30/30 brake chambers and JOST 2” / 3.5” bolted king pin. Triangle brand tires for reliable long-distance transport.
Key Features
- Customizable Tank Capacity & Compartments: 28000–70000L, 1–9 compartments for multi-product transport.
- Dual Tank Shape Option: Elliptical or circular tank body for different working demands.
- Complete Loading & Discharging Configuration: Top loading standard, bottom loading + vapor recovery optional; pneumatic bottom valve, API discharge valve.
- Safe Operation Design: Aluminum walkway, vented manholes, manual/pneumatic handrail.
- Famous Brand Chassis Parts: BPW/Fuwa axles, JOST landing leg & king pin, WABCO brake system.
- Multiple Suspension Choices: Mechanical, air suspension or bogie suspension.
- Built-in Transfer Pump: Convenient oil unloading and transfer on site.
- Tank Shape: Elliptical, circular type
- Payload: 28T – 70 tons
- Volume: 28000L – 70000L (Standard: 45000L)
- Compartments: 1-9 compartments optional
- Tanker body thickness: 5mm
- Manhole: 2 – 9 pcs, 16″ / 20″ with vent valve
- Discharge valve: 4″ API Adaptor Valve or 3″ Spherical Valve
- Bottom valve: 3″ / 4″, controlled by pneumatic block
- Handrail: Manual / Pneumatic available
- Bottom Loading (Optional): Overfill prevention, vapor recovery system
- Walkway: Aluminum walkway
- Main Beam: Q345 carbon steel
- Axles: 2 – 4 pcs, 13 – 20T BPW or Fuwa axles
- Suspension: Mechanical, Air, Bogie suspension optional
- Landing Leg: JOST E100
- Brake system: 6 pcs T30/30 brake chambers, WABCO relay valve
- Tire: 12R22.5, 315/80R22.5, 12.00R24, Triangle brand
- King Pin: JOST 2″ or 3.5″ bolting type
- Equipped with oil transfer pump
This crude palm oil tanker semi trailer is specially designed for transporting crude palm oil and other liquid edible oils / industrial liquids. Multiple compartments can load different media separately. It supports top loading and optional bottom loading with vapor recovery system, widely used for oil plant, port and liquid logistics transportation.
