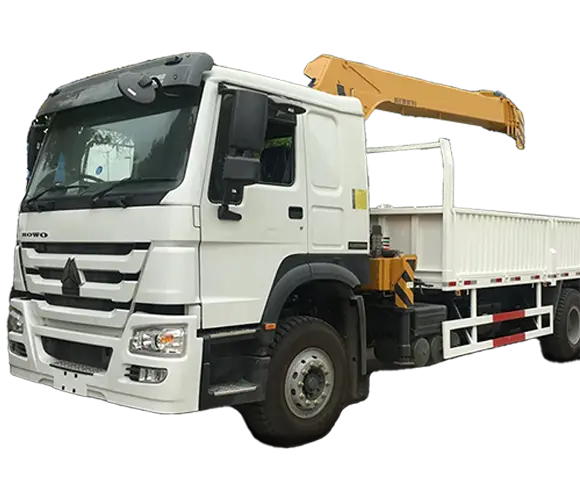

HOWO-7 6×4 Truck Mounted Crane
This HOWO-7 6×4 truck mounted crane is powered by WP10.340, 340HP Euro II engine. It is equipped with HW7 air-conditioned sleeper cab, HW19710 manual gearbox with HW70 PTO and ZF8118 steering gear. Optional lifting capacity from 8T to 16T, fitted with XCMG SQ8SK3Q crane model, suitable for loading, unloading and hoisting works at construction sites.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This HOWO-7 6×4 truck mounted crane integrates cargo transport and lifting functions into one unit, which greatly improves working efficiency. It adopts WP10.340 340HP Euro II engine, stable and durable for harsh working environments.
It is equipped with HW7 sleeper cab with air conditioning to guarantee driver comfort for long shifts. The HW19710 manual gearbox with HW70 PTO provides reliable power supply for the crane. ZF8118 steering gear brings flexible and stable control. The front axle is MAN TECH 9500kg with drum brake, matched with dual MAN TECH 16000kg double-reduction rear axles for strong load-bearing capacity.
Multiple lifting capacities are optional: 8T,10T,12T and 16T. This unit is equipped with XCMG SQ8SK3Q folding boom crane. Different cargo box sizes and steel plate thickness are configured corresponding to different tonnages. Customers can select tires of 13R22.5 or 315/80R22.5 with spare tire. Standard fittings include intercooler guard, fire extinguisher, reverse alarm and marker lights for higher safety.
This truck crane is widely used for lifting and transporting construction steel, precast parts, engineering equipment and other heavy goods. Customization of crane tonnage, cargo box size, painting color and extra safety accessories is available according to customer requirements.
| Model | HOWO-7 6×4 Truck Mounted Crane |
| Engine | WP10.340, 340HP, EURO II |
| Cab | HW7 sleeper cab, air conditioning |
| Transmission | HW19710 manual, 10 forward + 2 reverse gears, with HW70 PTO |
| Steering Gear | ZF8118 |
| Front Axle | MAN TECH, manufacturer rated load 9500kg, drum brake |
| Rear Axle | MAN TECH, manufacturer rated load 16000kg × 2, double reduction |
| Fuel Tank | 400L |
| Tire Options | 13R22.5, spare tire included 315/80R22.5, spare tire included |
| Optional Lifting Capacity | 8000kg / 10000kg / 12000kg / 16000kg |
| Crane Model | XCMG SQ8SK3Q |
| Cargo Box Dimension & Plate Thickness | 8T: 6800*2300*600mm, bottom 3mm, side 1.5mm 10T: 6500*2300*800mm, bottom 4mm, side 2mm 12T: 6200*2300*600mm, bottom 3mm, side 1.5mm |
| Additional Accessories | Intercooler guard, fire extinguisher, reverse alarm, marker lights |
- Construction material hoisting and transportation
- Equipment loading, unloading and short-distance relocation
- Road, bridge and infrastructure engineering works
- Logistics lifting and cargo handling service
- Multi-purpose hoisting transport for African project sites
