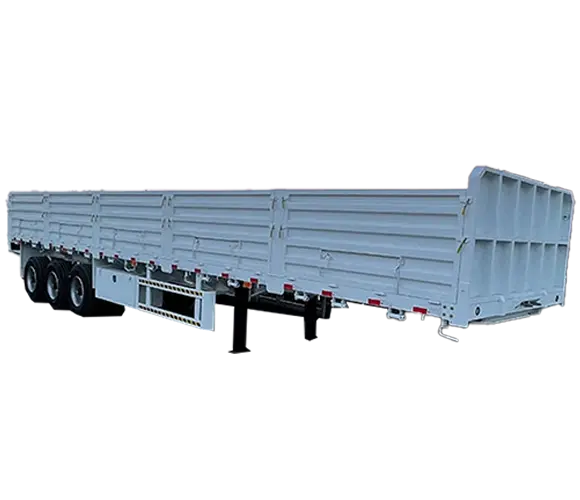

3 Axles Drop Side Flatbed Container Trailer with 1000mm Height Side Walls
3 Axles Drop Side Flatbed Container Trailer with 1000mm side walls, 80 ton payload, side panels with small access doors, FUWA/BPW axles, JOST kingpin and landing gear, WABCO overseas brake valve, for bulk cargo and container transportation.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
This 3 Axles Drop Side Flatbed Container Trailer with 1000mm Height Side Walls is a dual-purpose flatbed trailer for bulk goods and container transport. Standard dimension is 12500×2500×2700mm with a maximum payload of 80 tons. Its side wall panels are fitted with small service doors for convenient operation. Equipped with FUWA/BPW heavy axles, JOST coupling parts and WABCO overseas brake assembly, it is robust and practical for multi-scenario hauling.
Key Features
- Practical Side Wall Design: 1000mm high side walls, customizable height; each door leaf comes with a small access door for easy operation.
- Heavy Loading Capacity: Rated payload up to 80 tons.
- Flexible Axle Configuration: Optional 3 or 4 axles, 13T or 16T FUWA / BPW heavy-duty axles.
- Stable Suspension: Mechanical suspension or bogie suspension for heavy load working conditions.
- Famous Brand Fittings: JOST 2.0 / 3.5 inch kingpin (bolted or welded optional) and JOST C200T landing gear.
- Anti-slip Deck: 3mm thick checkered plate platform.
- Container Twist Locks: 4 / 8 / 12 sets available, lifting type or screw type for container fixing.
- Oversea Standard Brake System: WABCO RE6 relay valve for overseas market, TKL T30/30+T30 spring brake chamber and 45L air tank; ABS optional.
- Complete 24V Electrical System: ISO 7-pin socket, full set of signal lights and 6-core standard cable.
- High Anti-corrosion Paint Process: SA2.5 sandblasting pretreatment, two anti-corrosion primer coats plus one finish coat.
- Standard Accessories: Tool box and a full set of maintenance tools.
- Dimension(mm): 12500x2500x2700mm
- Trailer Sides: 1000mm height, customized by you, with small doors on each door leaf
- Loading capacity(ton): 80T
- Axles: 3/4 axles, 13T/16T, FUWA/ BPW Brand
- Tire: 12 units, 12.00R22.5
- Suspension: Mechanical/Bogie
- King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
- Landing Gear: JOST brand C200T
- Bottom Platform: 3mm-thick checkered plate
- Brake Chamber: WABCO RE 6 relay valves; T30/30+T30 spring braking chamber (TKL brand), 45L air tank
- Twist Locks: 4,8,12 sets (lifting or screw type)
- Valve: WABCO valve, specially intended for oversea market
- ABS: Optional
- Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
- Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
- Accessory: One tool box; one set of standard tools

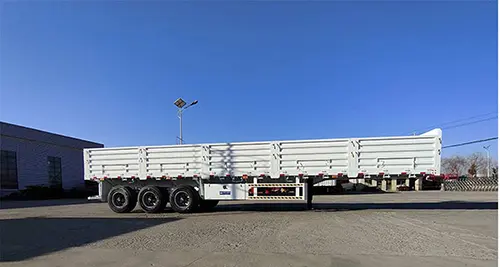

This drop side flatbed container trailer is equipped with 1000mm side walls and small access doors on each panel. It supports both bulk cargo and container transport via twist locks. Suitable for grain, aggregates, construction materials and 20ft /40ft container haulage, side wall height and structure can be customized.
