40FT Skeletal Container Semi Trailer
40FT skeletal container semi trailer, compatible with 20ft and 40ft containers, optional 2/3 axles (13T/16T FUWA/BPW), JOST E200 landing gear, WABCO brake system, multiple suspension and twist lock options for overseas container logistics.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview

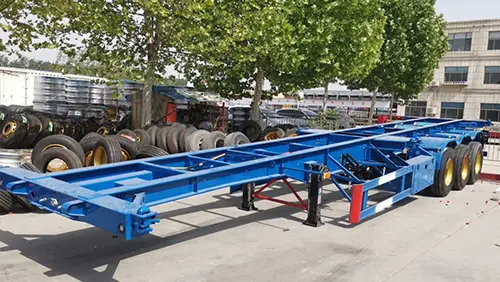

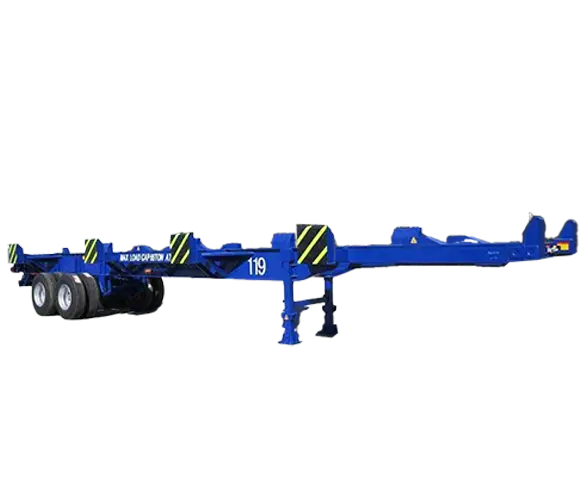

The 40FT Skeletal Container Semi Trailer is a lightweight skeleton chassis dedicated for 20ft and 40ft container transport. Its standard dimension is 12500×2500×1550mm. Customers can choose 2 or 3 axles with 13T or 16T FUWA/BPW heavy-duty axles. Equipped with JOST E200 landing gear, WABCO overseas brake assembly and optional ABS, it is a reliable and cost-effective chassis for container turnover.
Key Features
- Multi-container Compatibility: Suitable for loading 20ft single, double 20ft or one 40ft container.
- Flexible Axle Configuration: Optional 2 axles or 3 axles, 13T /16T FUWA or BPW axles.
- Three Suspension Types Available: Mechanical suspension, bogie suspension or airbag suspension to fit different road conditions.
- Dual-spec JOST King Pin: 2.0 inch or 3.5 inch king pin, bolted or welded structure.
- Multiple Twist Lock Options: 4 /8 /12 sets of lifting-type or screw-type twist locks.
- Overseas Standard Brake System: WABCO RE6 relay valve, TKL T30/30+T30 spring brake chamber and 45L air tank; ABS optional.
- 24V ISO Standard Electric System: Complete lighting set and 7-pin ISO socket for overseas market.
- Anti-corrosion Coating Process: SA2.5 sandblasting pretreatment, two anti-corrosion primer coats plus one finish coat.
- Standard Accessories: Tool box and a full set of maintenance tools.
- Dimension(mm): 12500x2500x1550mm
- Transport: 20/40ft containers
- Axles: 2/3 axles, 13T/16T, FUWA/ BPW Brand
- Tire: 8/12 units, 12.00R22.5 or 315/80R22.5
- Suspension: Mechanical/Bogie/Airbag suspension
- King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
- Landing Gear: JOST brand E200
- Brake Chamber: WABCO RE 6 relay valves; T30/30+T30 spring braking chamber (TKL brand), 45L air tank
- Twist Locks: 4,8,12 sets (lifting or screw type)
- Valve: WABCO valve, specially intended for oversea market
- ABS: Optional
- Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
- Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
- Accessory: One tool box; one set of standard tools
This 40ft skeletal container trailer is designed for container haulage. It can carry 20ft or 40ft containers with flexible axle, suspension and twist lock configurations. It adopts overseas standard brake and electric system, suitable for ports, freight yards and inland container transportation.
