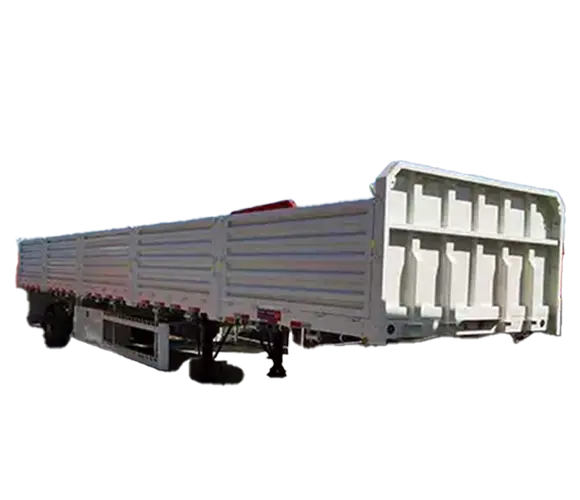

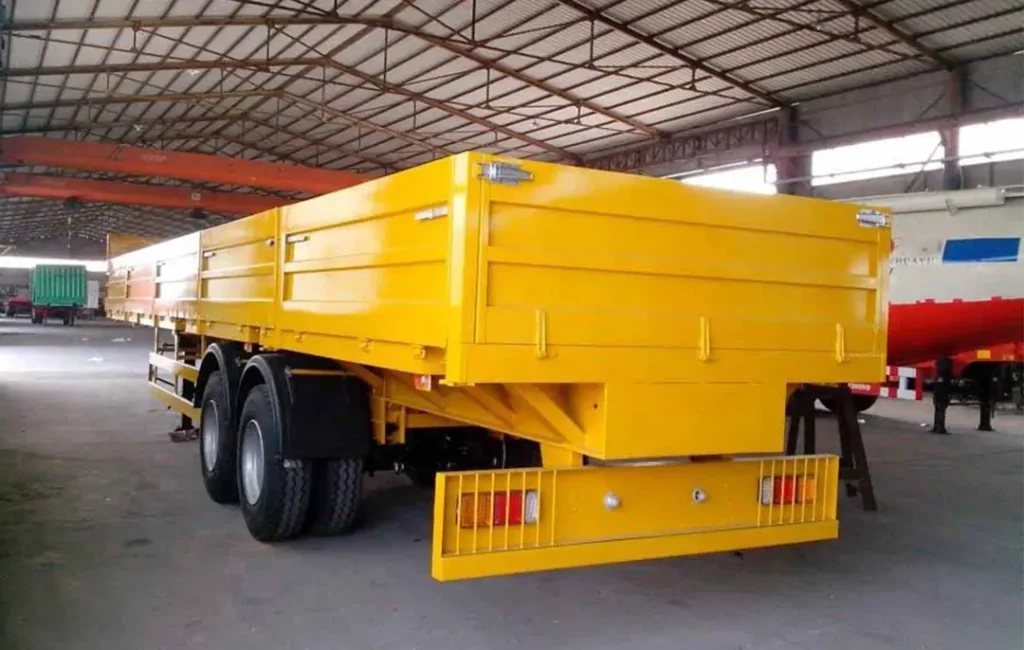

2 Axles Side Wall Flatbed Bulk Semi Trailer
2 Axles Side Wall Flatbed Bulk Semi Trailer, 60 ton payload, BPW/FUWA/ZY axles, JOST kingpin & landing gear, WABCO brake system, suitable for bulk cargo and container transportation.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
This 2 Axles Side Wall Flatbed Bulk Semi Trailer is a multi-purpose flatbed trailer for bulk cargo and container transportation. With 60-ton payload capacity and robust main beam structure, it can load 1×20”, 2×20” or 1×40” containers. It is equipped with famous brand components including JOST, BPW/FUWA/ZY and WABCO, stable and durable for long-distance bulk logistics.
Key Features
- High Load Capacity: Payload up to 60T, tare weight around 7.2T.
- Heavy-duty Main Beam: 500mm height main beam, top plate 14mm140mm, bottom plate 16mm140mm, middle plate 8mm for strong bearing capacity.
- Container Twist Locks: Multiple twist lock options (4+4/8/12 pcs), compatible with 20ft and 40ft containers.
- Anti-slip Platform: 3mm thick checkered plate deck.
- Famous Brand Fittings: JOST 2.0/3.5 inch kingpin (bolted/welded optional) and JOST 28T linkage outrigger landing gear.
- Premium Axles: 3 pcs 13T BPW / FUWA / ZY axles for reliable running.
- Dual Type Mechanical Suspension: American type or German type mechanical suspension, with 6 sets of 10-layer leaf springs 90mm*16mm.
- Rich Tire Options: Multiple tire specifications, 12 working tires plus 1 spare tire, matched with 9.0-22.5 rims.
- Safe Brake System: WABCO 6 relay valve, T30/30+T30 air chambers and 40L air tanks; ABS is optional.
- Complete Electrical System: 24V 7-pin ISO socket, full set of signal lights and 6-pin standard cable.
- Full Standard Accessories: Tool box, spare tire bracket and complete standard tools.
- Custom Support: Other configurations can be adjusted as customer requirements.
- Tare Weight: about 7.2 T
- Payload: 60 T
- Dimension (L*W*H): 12500mm*2500mm*1500mm
- Main beam: 500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness
- Twist lock: 4+4/8/12 pcs, which could support 1×20” container, 2×20” containers or 1×40” container one time
- Platform: 3mm thickness checkered plate
- King pin: JOST 2.0/3.5 inches (bolted or welded)
- Axles: BPW/FUWA/ZY brand, 13T, 3pcs
- Suspensions: Mechanical suspension (America type or German type)
- Leaf springs: 10 layers 90mm*16mm, 6 units
- Tires: 11R22.5/12R22.5/11.00R20/12.00R20/315/80R22.5/385/65R22.5, 12pcs+1pc spare tire
- Rims: 9.0-22.5
- Landing gear: JOST 28T, Linkage Outrigger
- Spare tire carrier: 1pc
- Tool box: 1 unit
- ABS: Optional
- Brake system: WABCO 6 relays valve; T30/30+T30 air chamber, 40L air tanks
- Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
- Accessories: 1 unit tool box, 1 pc spare tire carrier, all set of standard tools
- Others: As the factory standard or according to the customer’s requirements
This side wall flatbed bulk semi trailer is designed for bulk cargo transport and container hauling. It can carry 20ft /40ft containers, widely used for grain, gravel, construction materials and other bulk goods transportation. Custom configurations are available upon request.
