Heavy Duty Hydraulic Dump Truck Tipper Semi Trailer
Heavy duty hydraulic rear dump tipper semi trailer, overall dimension 12000×2600×1800mm, 45CBM capacity with 6 axles. Equipped with heavy mechanical suspension, 196 model hydraulic tipping cylinder, total 24 tires, 90# king pin, JOST landing gear, WABCO brake system, 24V circuit and LED lights for large-volume bulk cargo haulage.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview

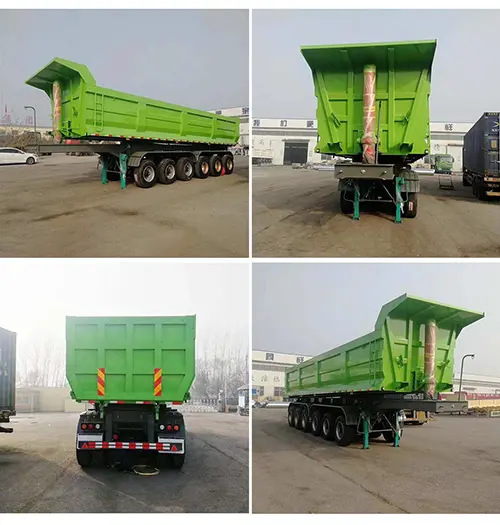

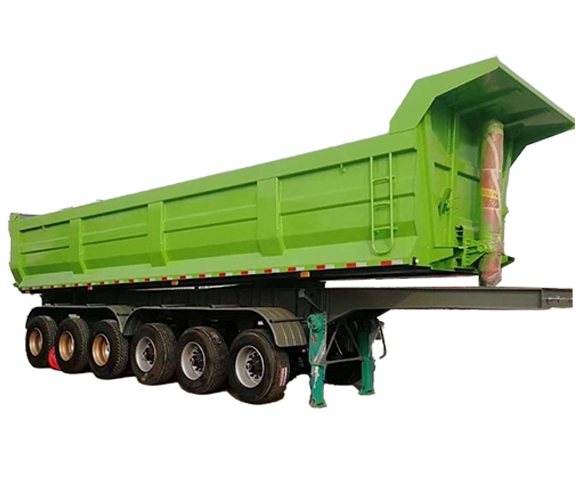

The Heavy Duty Hydraulic Dump Truck Tipper Semi Trailer is a high-capacity hydraulic rear tipper semi trailer. Its overall dimension is 12000×2600×1800 mm with loading volume up to 45CBM. Adopting 6-axle layout and heavy-duty mechanical suspension, it features outstanding stability under heavy load.
It is fitted with 196 model hydraulic cylinder as tipping system to offer strong lifting power for smooth dumping. There are 24 tires to evenly distribute cargo weight. The trailer uses 90# king pin and reliable JOST landing gear. The brake system adopts WABCO components for sensitive and safe braking. The whole electrical system is 24V, equipped with LED lights to meet overseas road lighting standards.
Key Features
- Large 45CBM Capacity: Suitable for high-volume bulk cargo transportation.
- 6-Axle Heavy Load Layout: Uniform force bearing and excellent stability.
- 196 Hydraulic Cylinder: Strong lifting capacity, reliable tipping performance.
- Heavy Mechanical Suspension: Adaptable to construction sites and mining rough roads.
- WABCO Brake System: Stable braking performance and high safety.
- JOST Landing Gear: Durable and easy to operate.
- 24V LED Lighting System: Energy-saving and long service life for overseas road use.
- Overall Dimension: 12000mm × 2600mm × 1800mm
- Volume: 45CBM
- Axles: 6 axles
- Suspension: Heavy duty mechanical suspension
- Tipping System: 196 hydraulic cylinder
- Tires: 24 units
- King Pin: 90#
- Landing Gear: JOST
- Brake System: WABCO
- Electrical System: 24V with LED lights
This heavy-duty hydraulic dump tipper semi trailer is built for large-capacity bulk material transport. With 6-axle structure and heavy mechanical suspension, it delivers stable load-bearing performance. The 196 hydraulic cylinder provides powerful and reliable tipping force. It is widely used for transporting sand, stone, coal, ore and aggregates in mines, quarries and large earthwork projects.
