Liquid Tanker Semi Trailer
3 axles 45m³ liquid tanker semi trailer with 3 equal 15,000L compartments, Double D or round tank optional. Constructed with Q345 steel, fitted with European aluminum alloy manholes and 4-inch subsea valves. Equipped with JOST E100 landing gear, 13T axles, mechanical suspension, WABCO RE6 braking system, optional pump system and ABS for liquid fuel transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview

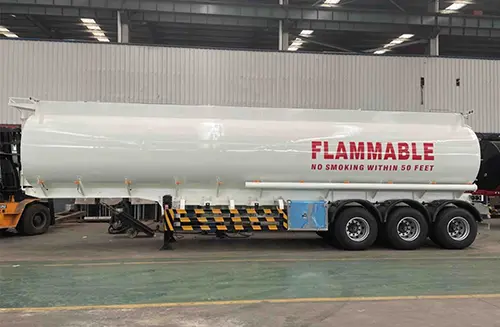

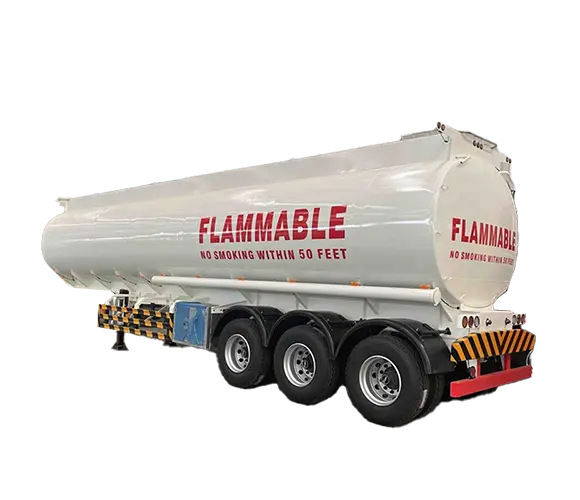

The Liquid Tanker Semi Trailer is a 45m³ multi-compartment liquid transport semi-trailer, available in Double D or round tank shape. Its standard dimension is 12300×2500×3800 mm, and dimensions can be adjusted per customer’s final design and requirements. It is equally divided into three 15,000L independent compartments for separate delivery of different liquid products.
The tank body, end plates, anti-wave baffles and main beams are all fabricated from Q345 steel for reliable structural strength. It is equipped with European standard accessories: three φ500mm aluminum alloy manhole covers, three sets of 4-inch subsea bottom valves and three 2.5-inch discharge outlet valves, together with two pieces of 2.5-inch ×6-meter rubber hoses. The pump system is optional according to customer needs.
For tank-top safety operation, anti-skid walkway with foldable handrails and anti-skid access ladder are installed. The chassis is fitted with JOST E100 double-speed landing gear and JOST 2.0” / 3.5” bolt-in king pin, matched with three 13-ton axles and mechanical suspension. The pneumatic braking system uses WABCO RE6 relay valve, TKL spring brake chambers and a 45L air tank; ABS is optional. Triangle 12R22.5 tires with 9.0-22.5 rims are standard, supplied with tool box and spare tire carrier. Shipment can be arranged by bulk vessel.
Key Features
- Three Equal 15,000L Compartments: Convenient for multi-type liquid delivery in one trip.
- Double D / Round Tank Optional: Flexible tank design for different transport scenarios.
- Solid Q345 Steel Construction: Good impact resistance and long service life.
- European Standard Fittings: Stable sealing performance for loading and unloading.
- Complete Anti-skid Safety Platform: Safe tank-top maintenance and operation.
- Reliable Famous-brand Components: JOST and WABCO core parts guarantee stable performance.
- Optional Pump & ABS: Meet different market configuration requirements.
- Tank Shape: Double D or Round shape, optional
- Dimension(L*W*H): 12300mm×2500mm×3800mm, the exact size depends on the final design and requirements from customers
- Total Volume: 45 m³
- Compartments: 3 compartments, 15,000L - 15,000L - 15,000L
- Tanker Body Material: 5mm thickness Q345 steel
- End Plate: 6mm thickness Q345 steel
- Wave-proof Baffle: 5mm thickness Q345 steel
- Manhole Cover: 3pcs, φ500mm, European type aluminum alloy
- Bottom Valve: 3pcs, 4 inch European subsea valve
- Discharging Valve: 3pcs, 2.5 inch European outlet valve
- Discharging Pipe: 2.5″ rubber hose, 2pcs, 6m each
- Pump System: Optional
- Walkway: Anti-skid walkway on top of the tank, with foldable handrail on both sides of the manhole covers
- Ladder: Anti-skid access ladder fitted at front/back head of the tank
- Main Beams: Welded design, Q345 steel
- Axle: 3 axles, 13 tons each
- Landing Gear: JOST E100, double speed type
- King Pin: JOST 2.0” or 3.5” bolt-in king pin
- Suspension: Mechanical suspension
- Pneumatic Braking System: WABCO RE 6 relay valve; TKL spring brake chamber; 1pc 45L air tank
- Rim: 9.0-22.5, 13pcs
- Tire: Triangle brand 12R22.5, 13pcs
- ABS: Optional
- Accessories: One standard tool box, one spare tire carrier
- Shipping Terms: By bulk vessel
This 3-compartment liquid tanker semi trailer is designed to carry gasoline, diesel and other liquid petroleum products. Three independent 15,000L compartments allow separate loading of different liquids. It adopts European standard valves and manholes to satisfy international hazardous liquid cargo transport standards, widely used for oil depot distribution, gas station replenishment and cross-border liquid logistics.
