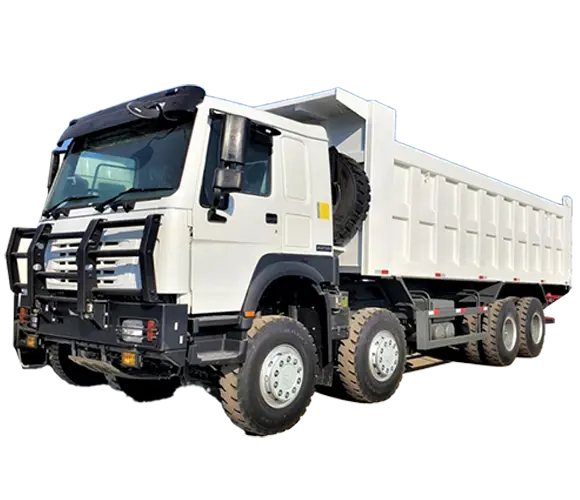

Upgraded HOWO 8×4 Dump Truck
This upgraded HOWO 8×4 heavy-duty dump truck adopts HW76 sleeper cab with mining bumper and front protection. Powered by WP10.380 380HP Euro II engine with EVB exhaust brake, fitted with HW19710 manual gearbox with PTO, U-type tipper body with front lifting system, perfect for mining and heavy construction transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Full Detail Page Content
This upgraded HOWO 8×4 dump truck is specially optimized for severe mining scenarios. It comes with a sturdy HW76 sleeper cab equipped with air conditioning, reinforced mining bumper and front protection frame, which effectively protects the cab against impact from rocks and debris.
It is driven by WP10.380 380HP Euro II engine with EVB exhaust brake, greatly improving braking safety during downhill operation and reducing the wear of service brakes. Matched with ZF8118 steering gear and mature HW19710 manual transmission (10 forward + 2 reverse gears) with PTO, the truck delivers stable power and reliable performance for heavy loads.
The powertrain configuration includes two 9000kg drum-brake front axles and two 16000kg heavy-duty rear axles, providing outstanding load capacity. A 400L large fuel tank extends continuous working time, and 13R22.5 tires together with a spare tire guarantee road reliability.
The tipper body dimension is 7000×2300×1600 mm, built with 8mm floor plate and 6mm side plates, equipped with front lifting mechanism for quick and convenient unloading.
This mining-version dump truck is widely used in mines, quarries and large infrastructure projects. Customization of body thickness, lifting cylinder type, paint color and extra accessories is available according to customer requirements.
| Model | Upgraded HOWO 8×4 Dump Truck |
| Cab | HW76 sleeper cab, air conditioning, mining bumper & front guard |
| Engine | WP10.380, 380HP, Euro II, with EVB exhaust brake |
| Steering Gear | ZF8118 |
| Transmission | HW19710 manual, 10 forward + 2 reverse gears, with PTO |
| Front Axle | 9000kg × 2, drum brake |
| Rear Axle | 16000kg × 2 |
| Fuel Tank | 400L |
| Tires | 13R22.5, spare tire included |
| Tipper Body | 7000×2300×1600 mm; floor 8mm, side wall 6mm, front lifting system |
- Open-pit mine and quarry ore & rock transportation
- Large construction site earthwork, muck and waste hauling
- Road, dam and water conservancy infrastructure projects
- Sand, gravel and other bulk heavy cargo delivery
- Harsh mining working conditions in African regions
