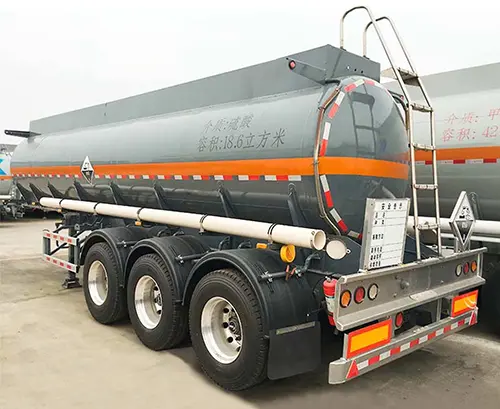

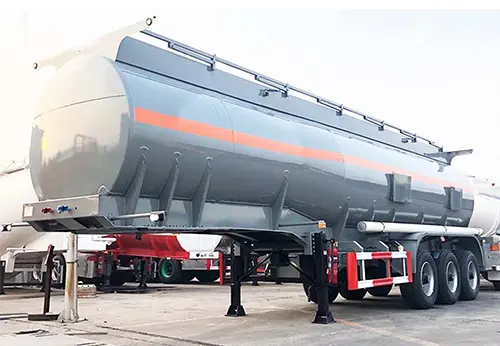

3 Axles 25000L 35 Ton Chemical Liquid Sulfuric Acid Tanker Semi Trailer
3 axles 25000L sulfuric acid chemical tanker semi trailer with 35-ton loading capacity, Q235 carbon steel tank structure, 1–10 optional compartments, Fuwa 13T axles, mechanical suspension, JOST/SAF 28T two-speed landing gear, 4S/2M ABS optional, sand blasting + polyurethane anti-corrosion painting for chemical liquid transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 3 Axles 25000L 35 Ton Chemical Liquid Sulfuric Acid Tanker Semi Trailer is a dedicated hazardous chemical transport trailer for sulfuric acid and similar corrosive liquid cargo. The tank is constructed from Q235 carbon steel; front and rear end plates are 6mm thick while the tank shell is 5mm thick, equipped with 4mm anti-wave baffles to reduce liquid sloshing during transit. It supports 1–10 separate compartments to carry different chemical liquids independently.
It is fitted with 3-inch API standard discharge valve, 4-inch bottom safety valve and two sets of 3-inch rubber discharge hoses. The chassis adopts three pieces of Fuwa 13T axles and mechanical leaf spring suspension. Braking system includes 6 double spring brake chambers and 40L air tanks; 4S/2M ABS is optional for enhanced driving safety. JOST/SAF 28-ton two-speed landing gear, Triangle brand 295/80R22.5 tires and 2-inch bolt-type king pin are standard.
Surface treatment includes sand blasting, anti-rust primer and polyurethane finish paint for excellent corrosion resistance. Standard configurations contain LED lights, 24V 7-core quick-change wiring, toolbox, spare tire bracket, fire extinguisher and maintenance tools.
Key Features
- Specialized for Corrosive Chemicals: Suitable for sulfuric acid and other industrial chemical liquid delivery.
- Multi-compartment Option: 1–10 compartments available for separated loading.
- Anti-wave Baffle Design: 4mm wave-proof plates stabilize liquid and improve driving safety.
- Complete Safety Valving: API discharge valve + bottom safety valve for reliable operation.
- Reliable Brand Chassis Parts: Fuwa axles, JOST/SAF landing gear, optional ABS.
- Heavy-duty Mechanical Suspension: Stable performance on intercity and inter-country roads.
- Anti-corrosion Painting Process: Sand blasting + primer + polyurethane topcoat for long service life.
- Full Safety & Maintenance Accessories: Fire extinguisher, dedicated tools and operation manual supplied.
- Rated Capacity: 25000L, 35 Ton
- Front & Rear End Plate: 6mm Q235 carbon steel
- Tank Body: 5mm Q235 carbon steel
- Compartments: 1-10 optional
- Tank Diameter: 500mm
- Discharging Valve: 3 inch API standard valve
- Wave-proof Plate Thickness: 4mm
- Bottom Safety Valve: 4 inch
- Discharging Pipe: 3 inch diameter rubber hose, 2pcs
- Walkway: Standard walkway
- Axle: Fuwa brand, 13 ton, 3pcs
- Rim: 9.0-22.5, 12pcs
- Tyre: Triangle brand 295/80R22.5, 12pcs
- Suspension: Mechanical suspension
- Leaf Spring: 90mm*13mm*10 layers
- King Pin: 2 inch bolt type
- Air Tank: 40L air tanks
- Brake Chamber: 6 double spring brake chambers
- ABS: 4S/2M optional
- Landing Gear: JOST/SAF brand, 28T two-speed
- Spare Tire Carrier: 1 set
- Lights: LED lights
- Electrical System: 7-wire harness, quick-change type, 24V
- Tool Box: 1pc, 1000×500×500mm
- Painting: Sand blasting + anti-rust primer + polyurethane topcoat
- Trailer Tools: Hex wrench, spare wheel crank, 1 fire extinguisher, operation manual
This chemical tanker semi trailer is designed for transportation of sulfuric acid and other corrosive chemical liquids. Multiple compartments allow separate loading of different chemicals. With wave baffles, safety bottom valve and complete safety accessories, it meets strict safety requirements for hazardous liquid logistics.
