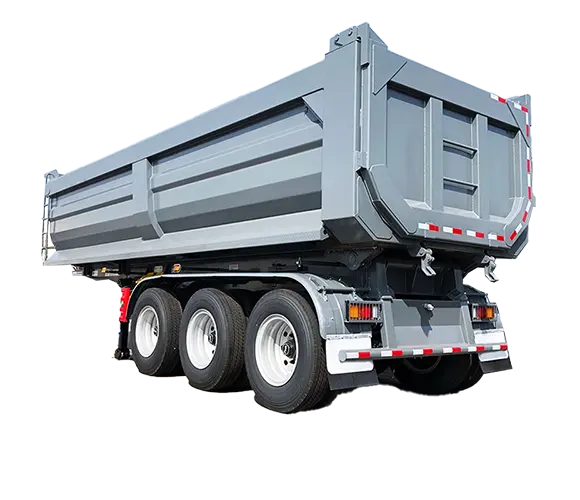

Tri Axles U Box Rear Dump Tipper Semi Trailer
Tri axles U-box rear dump tipper semi trailer, dimension 10000×2650×3700mm, 40CBM capacity, max payload 80000kg. U-shaped cargo box with 6mm side wall and 8mm floor, equipped with HYVA hydraulic lifting system, JOST kingpin and JOST 19” landing gear. Optional FUWA/BPW/ZY axles, mechanical / air / bogie suspension available, WABCO RE-6 dual-line brake system and 24V ISO electrical system for heavy bulk cargo transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview

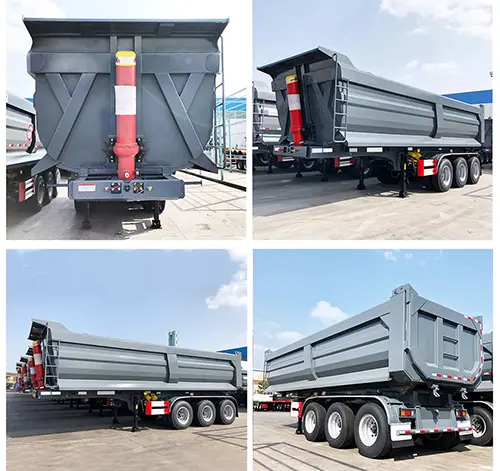

The Tri Axles U Box Rear Dump Tipper Semi Trailer is a heavy-duty U-type rear tipper semi trailer. Its standard dimension is 10000×2650×3700 mm, and dimensions can be customized according to customer demands. It has a loading volume of 40CBM and maximum payload up to 80 tons.
The U-shaped cargo box adopts arc transition design, which effectively reduces material adhesion and residual materials during tipping unloading. The side wall is 6mm and bottom floor is 8mm thick steel plate, which balances self-weight and wear resistance for long-term heavy-duty use. It is equipped with complete HYVA hydraulic lifting system to realize stable, safe and efficient dumping.
The chassis is fitted with JOST bolt-in kingpin (3.5”/2.5”) and JOST 19-inch landing gear. Customers can select FUWA, BPW, ZY or other brand axles. Three suspension types are optional: heavy-duty mechanical leaf spring suspension, air suspension and bogie suspension. Air suspension provides softer ride and protects cargo for long-distance highway transport; bogie suspension performs reliably on mining sites and rugged roads. The dual-line brake system uses WABCO RE-6 emergency relay valve, T30/30 brake chambers and 45L air tanks. The 24V electrical system includes a 7-pin ISO socket, full set signal lights and one 6-pin standard cable, with multiple tire specifications optional.
Key Features
- U-type Cargo Box Design: Smooth unloading, less material sticking and easy cleaning.
- Tri-Axle Stable Structure: 80-ton heavy load capacity for bulk materials.
- Thickened 8mm Wear-resistant Floor: Durable for ore, rock and abrasive cargo.
- Genuine HYVA Hydraulic Cylinder: Stable lifting, low failure rate for frequent tipping.
- Three Suspension Choices: Mechanical, air and bogie suspension for different road conditions.
- Famous-brand Core Components: JOST, WABCO and optional FUWA/BPW/ZY axles.
- Rich Tire Options: Meet highway and off-road application scenarios.
- ISO Standard 24V Electric Circuit: Compatible with mainstream tractor heads globally.
- Dimension(L*W*H): 10000*2650*3700 mm, customized sizes or designed according to customers’ needs
- Plate Thickness: Side wall: 6 mm; bottom floor: 8 mm
- Payload: 80000 Kg
- Volume: 40 CBM
- Hydraulic System: HYVA Brand
- Kingpin: JOST 3.5” / 2.5” bolt-in type
- Landing Gear: JOST 19”
- Tires: 11R22.5 /12R22.5 /11.00R20 /12.00R20 / 315/80R22.5
- Axle: FUWA / BPW / ZY or other brands optional
- Suspension: Heavy duty mechanical leaf spring suspension / Air suspension / Bogie suspension
- Brake System: Dual-line brake with WABCO RE-6 emergency relay valve, T30/30 brake chambers, 45L air tanks
- Electric System: 24V 7-pin ISO standard socket; fitted with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
This tri-axle U-box rear dump tipper semi trailer features smooth U-shaped bucket for residue-free unloading. With thickened wear-resistant plates and powerful HYVA hydraulic system, it suits ore, stone, coal and aggregate transport. Multiple suspension options are available: air suspension for highway comfort, bogie suspension for mines and rough unpaved roads. It is widely used for quarry, mining and infrastructure construction projects.
