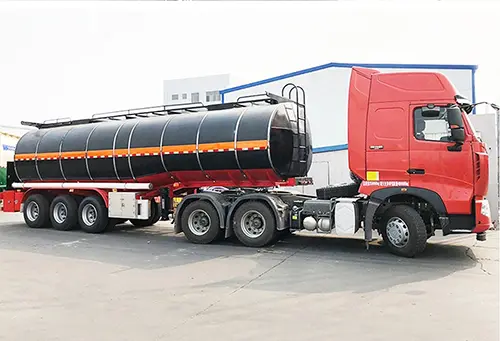

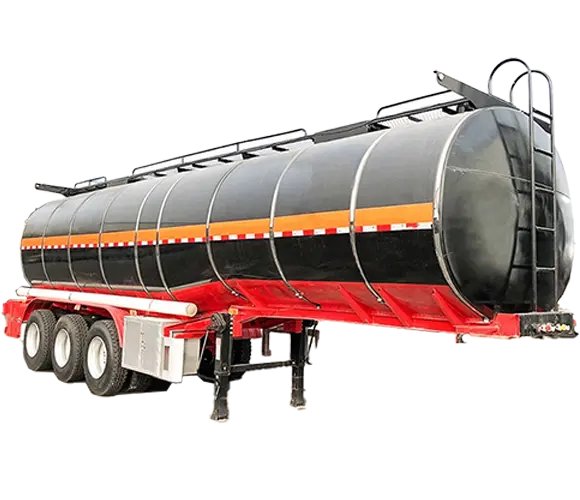

3 Axles Liquid Asphalt Heated Bitumen Transport Tanker Semi Trailer
3 axles heated bitumen tanker semi trailer, model QUEST9402GYYA, 30–50 CBM loading volume. Equipped with FUWA/BPW 13T axles, optional leaf spring or air suspension, WABCO brake relay valve, 24V German standard 7-pin electrical system, shot blasting anti-corrosion painting, single / multi compartments optional for hot liquid asphalt transportation.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 3 Axles Liquid Asphalt Heated Bitumen Transport Tanker Semi Trailer (Model QUEST9402GYYA) is a professional insulated & heated tanker for hot bitumen transport, with loading volume from 30 CBM to 50 CBM and tare weight between 9 tons and 11 tons. The chassis adopts heavy-duty Q345 main beam (500mm height), upper and lower flange 20mm, middle web 12mm. It is fitted with three 13T FUWA or BPW axles, users can choose leaf spring suspension or air suspension.
The brake system is dual-line pneumatic brake equipped with WABCO emergency relay valve for stable and reliable braking. Kingpin supports 2-inch or 3.5-inch interchangeable specification, matched with 28T two-speed manual landing gear. The electrical system follows German 7-way 24V standard, complete set of lamps and reflectors are supplied.
The surface treatment adopts shot blasting to SA 2.5 standard, followed by primer and polyurethane topcoat; total dry film thickness no less than 100μm, any color available. Compartment layout can be single, 2 or 4 compartments. Standard configuration includes two fire extinguishers, full valve assembly, tool box and 1–2 spare tire carriers.
Key Features
- Heated Tank Design: Maintains asphalt liquid status, prevents bitumen solidification during transportation.
- Wide Volume Range: 30–50 CBM optional, suitable for different project delivery demands.
- Dual Suspension Option: Leaf spring suspension for low-cost stable transport; air suspension for better cushioning.
- Heavy-duty Q345 Chassis: Reinforced beam structure, strong load capacity and long service life.
- Reliable Brake & Electrical System: WABCO emergency relay valve, German standard 24V 7-core wiring harness.
- High-standard Anti-corrosion Coating: SA2.5 shot blasting + thick polyurethane coating, DFT ≥100μm.
- Flexible Configuration: Compartment quantity, spare tire bracket quantity, paint color can be customized.
- Model: QUEST9402GYYA, Fuel / Oil Tank Trailer
- Loading Capacity: 30–50 CBM
- Axle: 3 pcs, 13T FUWA / BPW axle
- Tyre: 12 pcs, 12R22.5
- Dimensions(L×W×H): 9000–13000mm × 3000mm × 3700mm
- Tare Weight: 9T – 11T
- Axle Spacing: 1310mm
- Rims: 8.5-20, 9.0-20 optional
- Suspension System: Leaf spring suspension / Air suspension optional
- Brake System: Dual-line pneumatic brake with WABCO emergency relay valve
- Main Beam: 500mm height, Q345 steel
- Chassis: Upper flange 20mm, lower flange 20mm, mid web 12mm
- Compartment: Single, 2 or 4 compartments, customizable
- Fire Extinguisher: 2 pcs
- Valves: Full set of matching valves
- Kingpin: 2″ or 3.5″ interchangeable
- Landing Gear: 28T, two-speed manual operation
- Electrical System: 24V, 7-way (7-wire harness) German standard socket
- Lights & Reflectors: Rear light, rear reflector, turn signal light, side reflector, fog lamp, license plate light
- Painting: Shot blast to SA 2.5 standard + primer + polyurethane topcoat; total DFT ≥100μm, color optional
- Tool Box: 1 set with standard trailer tools
- Spare Tyre Carrier: 1pc or 2pcs optional
This heated bitumen tanker semi trailer is specially designed for transporting hot liquid asphalt. With heating system, it keeps bitumen in liquid state during transit. It is widely used for road construction, highway engineering and asphalt depot delivery.
