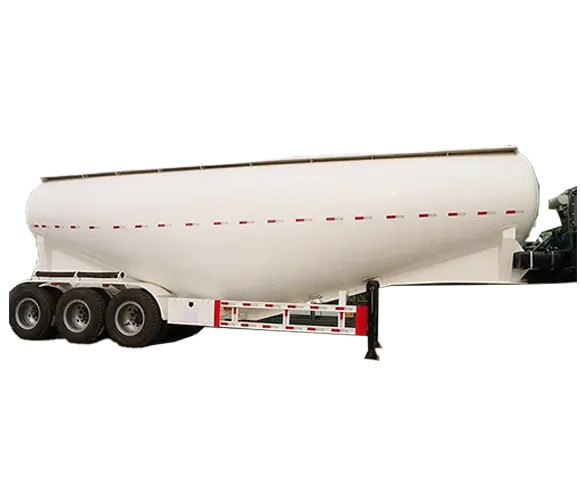

45T 3 Axles Cement Bulk Pneumatic Tanker Trailer
45T three-axle bulk cement pneumatic tanker trailer, tank volume optional from 30CBM to 60CBM, equipped with BOHAI/KEFA double-cylinder air compressor and WEICHAI diesel engine, designed for pneumatic transportation of cement, lime and other dry powder materials, with JOST landing gear and WABCO brake system.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 45T 3 Axles Cement Bulk Pneumatic Tanker Trailer is a heavy-duty pneumatic powder transport tanker with 45 tons rated loading capacity. Its standard overall dimension is 11000×2500×3650mm, and the tank volume can be selected between 30CBM and 60CBM. The tank body is built with high-strength wear-resistant steel, fitted with BOHAI/KEFA 12m³ double-cylinder air compressor and WEICHAI diesel engine to achieve efficient and stable pneumatic unloading. It is configured with heavy-duty mechanical suspension, JOST landing gear and WABCO brake assembly, widely used for cement plants, concrete batching stations and building material bulk logistics.
Key Features
- 45T Rated Loading Capacity: Heavy-duty chassis design for bulk powder transportation.
- Customizable Dimension: Standard size 11000×2500×3650mm, support personalized customization.
- Robust Tank Construction: 5mm high-strength wear-resistant steel, tank wall thickness 3.5mm.
- Adjustable Tank Volume: Optional capacity from 30CBM to 60CBM.
- Reliable Pneumatic Discharge System: BOHAI/KEFA 12m³ double cylinder air compressor powered by WEICHAI diesel engine.
- Heavy-duty Running Gear: 3 axles matched with heavy-duty mechanical suspension, suitable for complex road conditions.
- Complete Standard Accessories: 2 spare tire racks and 1 set tool box.
- Overseas Standard Configuration: JOST landing gear, WABCO brake system, 24V LED lights for overseas markets.
- Premium Polyurethane Paint: Excellent anti-corrosion and anti-rust property to extend service life.
- Rated Load: 45T
- Dimension(L*W*H)：11000*2500*3650 mm, customized sizes or designed according to customers’ needs
- Tanker body material：5mm high strength wear-resistance steel
- Volume：30CBM To 60CBM
- Axles：3 axles
- Tire：12 units
- Application：BOHAI/KEFA brand, for transporting lime, cement, powder etc.
- Tank body thickness：3.5mm
- Compressor：BOHAI/KEFA brand 12m³ double cylinder air compressor
- Spare tire rack：2 units
- Diesel Engine：WEICHAI Brand
- Suspension：Heavy duty mechanical suspension
- Landing gear：JOST
- Brake system：WABCO
- Light：LED light, specially intended for oversea markets
- Voltage：24V
- Tool box：1 set
- Painting：Polyurethane paint, with long service life, anti-rust performance
This 45-ton pneumatic bulk cement tanker semi trailer adopts air-pressure discharging technology. It is mainly used for conveying cement, lime, fly ash and other dry powder bulk goods. Tank capacity and overall dimensions can be customized to meet various bulk powder transport requirements.
