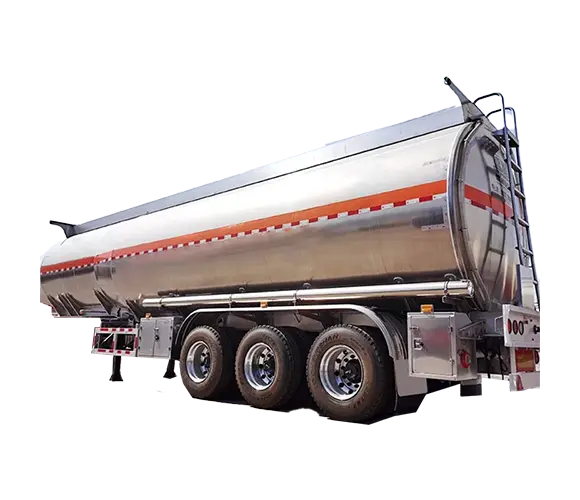

3 Axles 42000 Liters Aluminum Alloy Oil Tanker Semi Trailer
3 axles 42000L oil tanker semi trailer, round tank shape, divided into 3 compartments: 15,000L-15,000L-12,000L. It adopts European aluminum alloy manholes and 4-inch subsea bottom valves, equipped with JOST E100 landing gear, 13T axles, mechanical suspension, WABCO RE6 relay valve, optional pump system and ABS for separate fuel transportation.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview

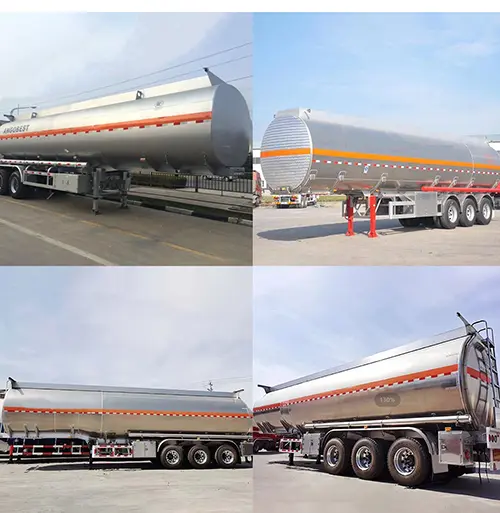

The 3 Axles 42000 Liters Oil Tanker Semi Trailer is a 42CBM multi-compartment fuel semi-trailer with round tank shape. Standard overall dimension is 12300×2500×3800mm, and the dimension can be adjusted according to customer requirements. It is split into three independent compartments with capacity of 15,000L, 15,000L and 12,000L respectively.
The tank body is 5mm Q345 carbon steel, end plates are 6mm Q345 carbon steel, with 5mm Q345 anti-wave baffles to reduce liquid surge during driving. It is equipped with European standard accessories: three φ500mm aluminum alloy manhole covers, three sets of 4-inch subsea bottom valves and three 2.5-inch outlet discharge valves, matched with two pieces of 2.5-inch ×6-meter rubber discharge hoses. The oil transfer pump system is optional.
For safe top operation, anti-slip walkway, foldable handrails beside manholes and anti-slip access ladder at tank front or rear are equipped. The chassis adopts welded Q345 main beam, three 13T axles and mechanical suspension. It is fitted with JOST E100 double-speed landing gear and JOST 2.0” / 3.5” bolt-in king pin. The brake system adopts WABCO RE6 relay valve, TKL spring brake chambers and one 45L air tank; ABS is optional. Triangle 12R22.5 tires and 9.0-22.5 rims are standard. Tool box and spare tire carrier are included as standard accessories, shipped by bulk vessel.
Key Features
- Unequal 3-compartment Layout: 15,000L+15,000L+12,000L for flexible mixed fuel distribution.
- Round Tank Structure: Stable structure, convenient for tank internal processing and cleaning.
- Europe-spec Fluid Fittings: Aluminum alloy manholes and subsea valves, safe for fuel loading and unloading.
- Safe Working Platform: Anti-slip walkway, foldable handrail and access ladder for tank-top operation.
- Rugged Q345 Tank & Chassis: High structural strength, suitable for long-distance dangerous liquid transport.
- Reliable Famous-brand Components: WABCO brake relay valve, JOST landing gear and king pin.
- Optional Upgrades: Transfer pump and ABS can be configured as customer’s request.
- Tank Shape: Round shape
- Dimension(L*W*H): 12300mm×2500mm×3800mm, exact size subject to customer’s final design and requirements
- Total Volume: 42 m³ (42000L)
- Compartments: 3 compartments, 15,000L - 15,000L - 12,000L
- Tanker Body Material: 5mm thickness Q345 carbon steel
- End Plate: 6mm thickness Q345 carbon steel
- Wave-proof Baffle: 5mm thickness Q345 carbon steel
- Manhole Cover: 3pcs, φ500mm, European type aluminum alloy
- Bottom Valve: 3pcs, 4 inch European subsea valve
- Discharging Valve: 3pcs, 2.5 inch European outlet valve
- Discharging Pipe: 2.5″ rubber hose, 2pcs, 6m each
- Pump System: Optional
- Walkway: Anti-slip top walkway with foldable handrails beside manholes
- Ladder: Anti-slip access ladder installed at front or rear of tank
- Main Beam: Welded structure, Q345 carbon steel
- Axle: 3 axles, 13 tons each
- Landing Gear: JOST E100, double-speed type
- King Pin: JOST 2.0” or 3.5” bolt-in king pin
- Suspension: Mechanical suspension
- Pneumatic Brake System: WABCO RE 6 relay valve; TKL spring brake chambers; 1pc 45L air tank
- Rim: 9.0-22.5, 13pcs
- Tire: Triangle brand 12R22.5, 13pcs
- ABS: Optional
- Accessories: 1 standard tool box, 1 spare tire carrier
- Shipping Term: Bulk vessel shipment
This three-compartment oil tanker semi trailer is designed for transporting gasoline, diesel and other petroleum products. Three unequal compartments support flexible loading schemes for different oil types. It is fitted with European standard valves and manholes to meet international dangerous liquid transport requirements, widely used for oil depot distribution, gas station supply and cross-border fuel logistics.
