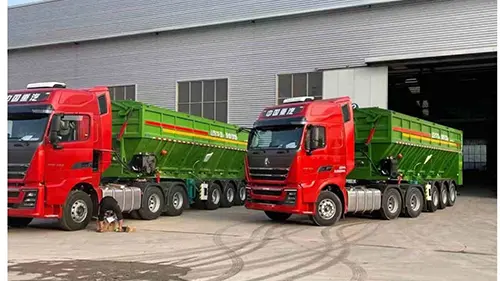

3 Axles Crawler Dump Tipper Semi Trailer
3 axles crawler dump tipper semi trailer, working box size 11500×2500×1800mm, 35m³ volume, max loading capacity ≤50T, tare weight 7.5–7.8T. Light thin-plate cargo box, heavy-duty mechanical suspension with FUWA 13T axles, aluminum landing gear and aluminum water tank, dual hydraulic tanks, optional paint color, multiple shipping ways for bulk material transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview

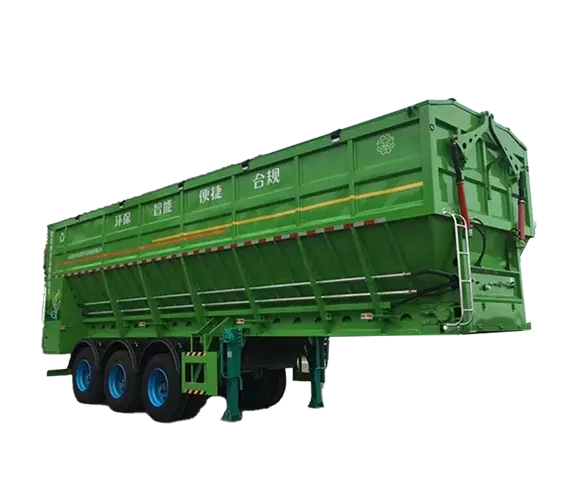

The 3 Axles Crawler Dump Tipper Semi Trailer is a special crawler-type discharge tipping semi trailer. Its working box dimension is 11500×2500×1800 mm with 35m³ loading volume, maximum loading capacity up to 50 tons, and tare weight controlled between 7.5T and 7.8T.
The cargo box uses thin lightweight plates: side wall and bottom plate 2.5mm. The main beam is robustly constructed with upper and lower plates of 10mm and middle web plate of 6mm to balance light self-weight and structural reliability. It is equipped with three FUWA 13-ton axles and heavy-duty mechanical suspension. The leaf spring is 10 layers of 90mm ×13mm for stable load bearing on rough roads.
It is fitted with aluminum landing gear and aluminum water tank for corrosion resistance. Two hydraulic tanks are arranged to support crawler unloading system. Tires are 12R22.5 matched with 9.00-22.5 rims. Customers can select any paint color. Multiple shipping solutions are available: flat rack container, bulk cargo or RORO vessel.
Key Features
- Crawler Discharge Design: Suitable for wet, sticky materials that are hard to unload by ordinary rear tippers.
- Light Tare Weight: Thin plate box keeps dead weight low to increase effective payload.
- Reliable FUWA 13T Axles & Heavy Leaf Spring Suspension: Stable performance for mining and earthwork.
- Aluminum Landing Gear & Water Tank: Lightweight and rust-proof.
- Dual Hydraulic Tanks: Stable power supply for crawler unloading.
- Flexible Shipping Options: Flat rack, bulk or RORO to meet different logistics plans.
- Custom Paint Color: Match brand requirements.
- Working Box Dimension: 11500mm × 2500mm × 1800mm
- Working Volume: 35 m³
- Loading Capacity: ≤ 50T
- Net Weight: 7.5–7.8T
- Box Sidewall Thickness: 2.5mm
- Main Beam: Upper & lower plate 10mm, middle web plate 6mm
- Bottom Plate Thickness: 2.5mm
- Axles: 3 pcs FUWA brand 13T axles
- Suspension: Heavy-duty mechanical suspension
- Leaf Spring: 10 layers, 90mm (W) × 13mm (Thickness)
- Landing Gear: Aluminum type
- Tire: 12R22.5, Chinese brand
- Rim: 9.00-22.5
- Water Tank: Aluminum material
- Hydraulic Tank: 2 pcs
- Painting Color: Customizable, any color available
- Shipping Method: Container frame / flat rack container / bulk cargo / RORO ship
This 3-axle crawler dump tipper semi trailer adopts crawler discharge structure for sticky, wet and easily stuck materials such as clay, sludge, wet soil and mineral tailings. With light tare weight and large loading capacity, it avoids material sticking and dumping failure common for traditional rear tippers. It is widely used in mines, sludge treatment projects, wet earthwork and construction sites.
