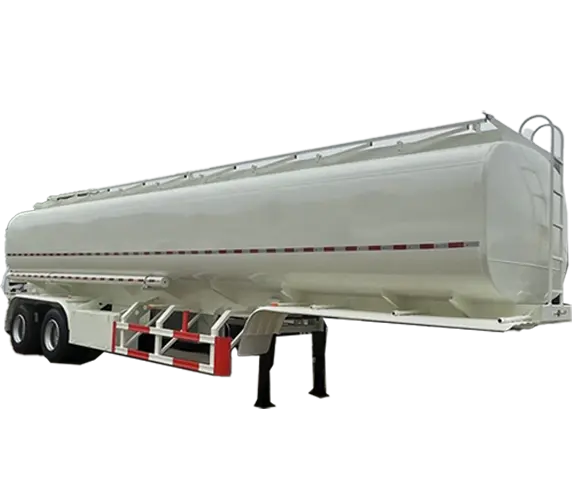

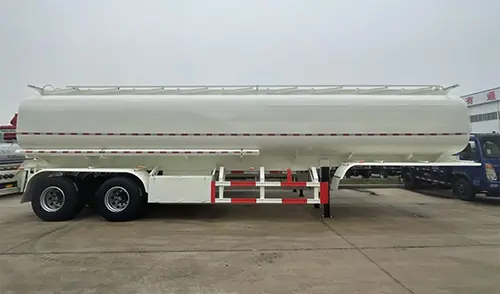

Bogie Suspension Petrol Fuel Tanker Semi Trailer
40000L petrol fuel tanker semi trailer with 4 equal 10,000L compartments, square or round tank optional. Tank constructed from Q345B carbon steel, equipped with European aluminum alloy manholes and 4-inch subsea valves. Multiple suspension choices including bogie suspension, optional FUWA/BPW/ZY axles, WABCO RE-6 dual-line brake system and 24V ISO electrical system for fuel transportation on rough roads.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The Bogie Suspension Petrol Fuel Tanker Semi Trailer is a 40000L multi-compartment fuel transport semi-trailer. Tank shape can be square or round. Standard overall dimension is 12000×2500×3650 mm, and the size can be customized as customer requirements. It is divided into four equal independent compartments of 10,000L each for separate delivery of different oil products.
The whole tank adopts heavy-duty Q345B carbon steel: tank body 5mm, punched end plates 6mm, anti-wave baffles 5mm and partition plates 6mm. It is equipped with European standard fittings: four φ500mm aluminum alloy manhole covers, four 4-inch subsea bottom valves and four 2.5-inch discharge outlet valves. A complete pneumatic control system including combined switch and emergency stop switch is provided, matched with two 6-meter discharge pipes.
For chassis configuration, it adopts JOST bolt-in kingpin (3.5”/2.5”) and JOST 19-inch double-speed landing gear. Customers can select FUWA, BPW, ZY or other brand axles. Three suspension types are available: mechanical leaf spring suspension, air suspension and bogie suspension, among which bogie suspension performs well on rugged and unpaved roads. The dual-line brake system is fitted with WABCO RE-6 emergency relay valve, T30/30 brake chambers and 45L air tanks. The 24V electrical system adopts 7-pin ISO standard socket, complete with full set signal lights and one set of 6-pin standard cable.
Key Features
- Four Equal 10,000L Compartments: Flexible for simultaneous delivery of four types of fuel.
- Bogie Suspension Optional: Strong load capacity and outstanding adaptability for rough roads.
- Heavy Q345B Steel Tank: High strength, impact resistance and long service life.
- Europe-spec Valves & Manholes: Reliable sealing and safety during loading and unloading.
- Complete Pneumatic Control with Emergency Switch: Fast emergency cut-off operation.
- Multiple Axle & Suspension Options: Match different regional road and weight regulations.
- ISO Standard 24V Electrical Circuit: Compatible with mainstream tractor heads.
- Dimension(L*W*H): 12000*2500*3650 mm, customized sizes or designed according to customers’ needs
- Tank Shape: Square, Round, customizable
- Valid Volume: 40000L, customizable
- Compartments: 4 compartments, 10,000L-10,000L-10,000L-10,000L, customizable
- Tank Body Material: Q345B, 5mm thickness
- End Plates: Q345B, 6mm thickness, punching processed
- Anti-wave Baffles: Q345B, 5mm thickness
- Partition Plates: Q345B, 6mm thickness
- Manhole Cover: 4pcs, φ500mm, European type aluminum alloy
- Bottom Valve: 4pcs, 4 inch European subsea valve
- Discharging Valve: 4pcs, 2.5 inch European outlet valve
- Pneumatic Control System: 1 set combined pneumatic control switch and 1 unit emergency stop switch
- Discharging Pipe: 2 pcs, 6m per piece
- Kingpin: JOST 3.5” / 2.5” bolt-in type
- Landing Gear: JOST brand, 19” double-speed
- Tires: 11R22.5 /12R22.5 /315/85R22.5
- Axle: FUWA / BPW / ZY or other brands optional
- Suspension: Mechanical leaf spring suspension / Air suspension / Bogie suspension
- Brake System: Dual-line brake with WABCO RE-6 emergency relay valve, T30/30 brake chambers, 45L air tanks
- Electric System: 24V 7-pin ISO standard socket; fitted with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
This Q345B fuel tanker semi trailer is suitable for transporting gasoline, diesel and other liquid petroleum products. Four equal independent compartments support separate loading of different fuels. Bogie suspension option delivers excellent road adaptability for poor road conditions. It meets international dangerous goods transport requirements, widely used for oil depot distribution, gas station replenishment and long-distance cross-border fuel logistics.
