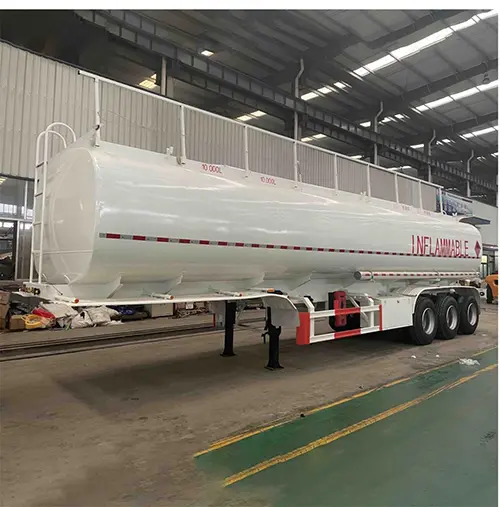

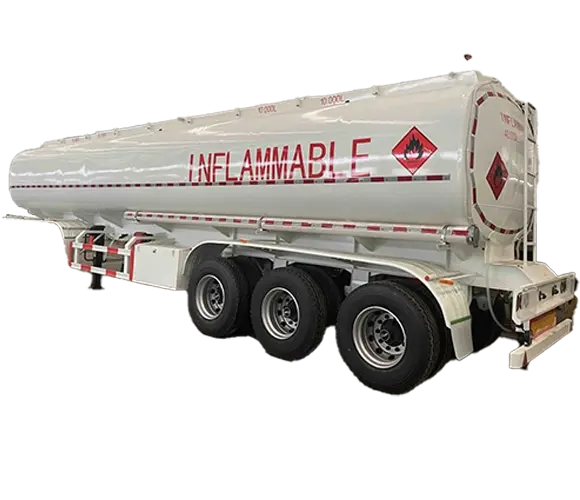

3 Axles 4 Compartments Fuel Tanker Semi Trailer
40m³ fuel tanker semi trailer with 4 equal 10,000L compartments, double D or round tank shape, 6mm Q345 tank construction. Fitted with European aluminum manholes and 4” subsea bottom valves, JOST landing gear & king pin, 13T axles, mechanical suspension, WABCO RE6 brake valve, pump system and ABS optional, for separate transport of different fuel products.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 3 Axles 4 Compartments Fuel Tanker Semi Trailer is a 40m³ multi-compartment fuel transport semi-trailer. Tank shape can be Double D or Round. Standard overall dimension is 13000×2500×3800mm, and dimensions can be adjusted according to customer requirements. It is equally divided into four independent 10,000L compartments to carry different fuel products separately.
The tank body and end plates are made of 6mm Q345 carbon steel, with 5mm Q345 anti-wave baffles to reduce liquid sloshing during driving. It adopts European specification accessories: four φ500mm aluminum alloy manhole covers, four sets of 4-inch subsea bottom valves and four 2.5-inch outlet discharging valves, equipped with two pieces of 2.5-inch ×6-meter rubber discharge hoses. The oil transfer pump system is optional.
Safety and operation configurations include anti-slip top walkway with foldable handrails and anti-slip access ladder at tank front or rear. The chassis adopts welded Q345 main beam, three 13T axles and mechanical suspension. It is equipped with JOST E100 double-speed landing gear and JOST 2.0” / 3.5” bolt-in king pin. The brake system uses WABCO RE6 relay valve, TKL spring brake chambers and one 45L air tank; ABS is optional. Standard tires are Triangle 12R22.5 with matching 9.0-22.5 rims. A tool box and spare tire bracket are supplied as standard accessories, normally shipped by bulk vessel.
Key Features
- Four Equal Compartments: 4×10,000L separate chambers for simultaneous delivery of different fuels.
- Dual Tank Shape Option: Double D or round tank to suit different road and loading rules.
- Europe-spec Fluid Fittings: Aluminum manholes, subsea bottom valves for safer fuel loading & unloading.
- Safe Working Platform: Anti-slip walkway, foldable handrail and access ladder for top operation.
- Heavy-duty Q345 Tank & Chassis: Strong structure for long-distance hazardous liquid transport.
- Famous Brand Brake & Chassis Parts: WABCO relay valve, JOST landing gear and king pin.
- Optional Pump & ABS: Flexible upgrade options for unloading efficiency and driving safety.
- Tank Shape: Double D or Round shape, optional
- Dimension(L*W*H): 13000mm×2500mm×3800mm, exact size subject to customer’s final design and requirements
- Total Volume: 40 m³
- Compartments: 4 compartments, 10,000L + 10,000L + 10,000L + 10,000L
- Tanker Body Material: 6mm thickness Q345 carbon steel
- End Plate: 6mm thickness Q345 carbon steel
- Wave-proof Baffle: 5mm thickness Q345 carbon steel
- Manhole Cover: 4pcs, φ500mm, European type aluminum alloy
- Bottom Valve: 4pcs, 4 inch European subsea valve
- Discharging Valve: 4pcs, 2.5 inch European outlet valve
- Discharging Pipe: 2.5″ rubber hose, 2pcs, 6m each
- Pump System: Optional
- Walkway: Anti-slip top walkway with foldable handrails beside manholes
- Ladder: Anti-slip access ladder installed at front or rear of tank
- Main Beam: Welded structure, Q345 carbon steel
- Axle: 3 axles, 13 tons each
- Landing Gear: JOST E100, double-speed type
- King Pin: JOST 2.0” or 3.5” bolt-in king pin
- Suspension: Mechanical suspension
- Pneumatic Brake System: WABCO RE 6 relay valve; TKL spring brake chambers; 1pc 45L air tank
- Rim: 9.0-22.5, 13pcs
- Tire: Triangle brand 12R22.5, 13pcs
- ABS: Optional
- Accessories: 1 standard tool box, 1 spare tire carrier
- Shipping Term: Bulk vessel shipment
This multi-compartment fuel tanker semi trailer is designed for gasoline, diesel and other fuel oils. Four independent 10,000L compartments allow simultaneous delivery of different oil types. European standard valves and manholes meet international hazardous liquid transport requirements, widely used for oil depots, gas station distribution and cross-border fuel logistics.
