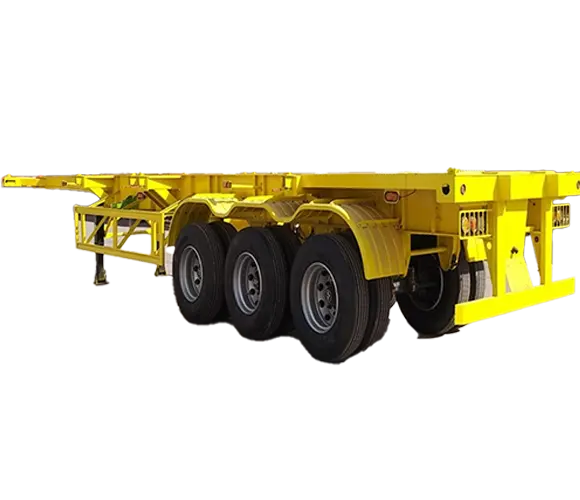

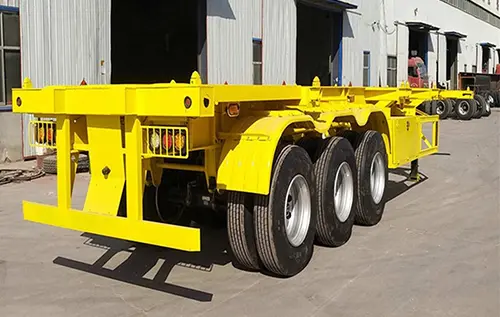

3 Axles 40FT Skeleton Container Semi Trailer
3 Axles 40FT Skeleton Container Semi Trailer, equipped with BOHAI/KEFA air compressor and WEICHAI diesel engine, for transporting cement, lime and other powder materials, heavy-duty mechanical suspension, JOST landing gear and WABCO brake system.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 3 Axles 40FT Skeleton Container Semi Trailer is a bulk powder tanker trailer based on 40ft skeleton frame, widely used for pneumatic transportation of cement, lime and other dry powder materials. The tank body is made of high-strength wear-resistant steel, matched with BOHAI/KEFA double-cylinder air compressor and WEICHAI diesel power unit for independent pneumatic unloading. It adopts heavy-duty mechanical suspension, JOST landing gear and WABCO brake system, stable and durable for cement plants, mines and building material logistics.
Key Features
- Customizable Overall Dimension: Standard size 11000×2500×3650mm, support customized design.
- Robust Tank Structure: Tank material 5mm high-strength wear-resistant steel, tank wall thickness 3.5mm.
- Flexible Volume Range: Available capacity from 30CBM to 60CBM to meet different transport needs.
- Reliable Pneumatic Discharge System: BOHAI/KEFA 12m³ double cylinder air compressor powered by WEICHAI diesel engine.
- Heavy-duty Running Gear: 3 axles, heavy-duty mechanical suspension for rough road conditions.
- Complete Standard Accessories: 2 spare tire racks, 1 set tool box.
- Oversea Standard Configuration: JOST landing gear, WABCO brake system, 24V LED lights for overseas market.
- High-performance Polyurethane Coating: Good anti-corrosion and anti-rust property, long service life.
- Dimension(L*W*H)：11000*2500*3650 mm, customized sizes or designed according to customers’ needs
- Tanker body material：5mm high strength wear-resistance steel
- Volume：30CBM To 60CBM
- Axles：3 axles
- Tire：12 units
- Application：BOHAI/KEFA brand, for transport lime, cement, powder etc.
- Tank body thickness：3.5mm
- Compressor：BOHAI/KEFA brand 12m³ double cylinder air compressor
- Spare tire rack：2 units
- Diesel Engine：WEICHAI Brand
- Suspension：Heavy duty mechanical suspension
- Landing gear：JOST
- Brake system：WABCO
- Light：LED light, specially intended for oversea markets
- Voltage：24V
- Tool box：1 set
- Painting：Polyurethane paint, with long service life, anti-rust performance
This 40ft skeleton powder tanker semi trailer is specially used for bulk powder materials such as cement, lime and fly ash. It adopts pneumatic unloading mode, stable discharging, large optional volume range. Tank size and configuration can be customized according to customer requirements.
