4 Axles 100-120T Lowbed Lowboy Semi Trailer
4 Axles Lowbed Lowboy Semi Trailer, 100-120 ton payload, customized dimension, equipped with JOST kingpin & landing gear, FUWA/BPW axles, WABCO brake system, for heavy oversized machinery transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview

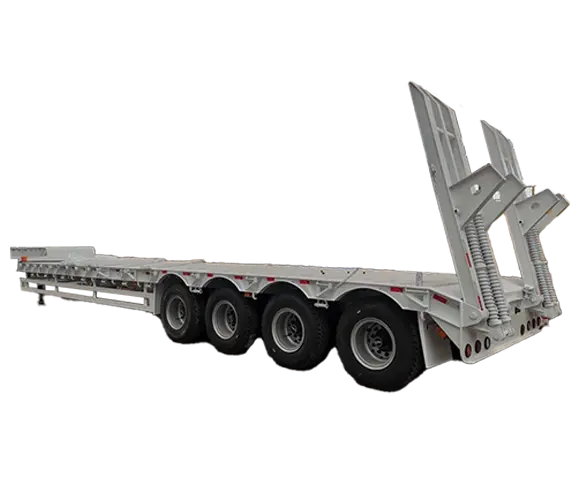

The 4 Axles 100-120T Lowbed Lowboy Semi Trailer is engineered for super heavy-duty transportation. With a loading capacity of 100 to 120 tons and standard dimension 14000×3000×1800 mm, this heavy lowboy trailer features a reinforced frame structure, stable loading ladders and world-famous brand components, delivering high stability and safety for hauling oversized heavy machinery.
Key Features
- Customizable Size: Standard size 14000×3000×1800 mm, we can design and produce according to your special requirements.
- Super Heavy Payload: Rated load from 100,000 Kg to 120,000 Kg, ideal for large heavy equipment.
- Anti-slip Platform: 4/5/6mm thick checkered plate for strong load bearing and anti-slip performance.
- Heavy-duty Loading Ladder: Enhanced mechanical ladders for smooth loading and unloading of heavy machines.
- Reliable Connection: JOST kingpin (2.0 / 3.5 inches, bolted or welded option) and JOST 19-inch landing gear.
- Multiple Tire Choices: 11R22.5 / 12R22.5 / 11.00R20 / 12.00R20 for different road conditions.
- Premium Axles: FUWA, BPW, ZY or other trusted axle brands for long service life.
- Stable Suspension: Heavy duty spring mechanical suspension or rigid suspension for heavy load.
- Safe Braking System: Dual-line air brake system with WABCO Re-6 emergency relay valve, T30/30 air chamber and 45L air tanks.
- Complete Lighting & Electrical System: 24V 7-pin ISO socket, full set of lights and 6-pin standard cable.
- Dimension(L*W*H): 14000*3000*1800 mm, customized sizes or designed according to your needs
- Payload: 100000 - 120000 Kg
- Bottom Platform: 4/5/6mm thick checkered plate
- Ladder: Enhanced mechanical ladders
- Kingpin: JOST brand 2.0 or 3.5inches (bolted or welded type)
- Landing gear: JOST brand 19”
- Tires: 11R22.5 /12R22.5/11.00R20/12.00R20
- Axle: FUWA/BPW/ZY or other Brands
- Suspension: Heavy duty mechanical suspension with springs/Rigid suspension
- Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks
- Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
This lowbed lowboy semi trailer is built for super heavy load transport, widely used to carry large excavators, bulldozers, road rollers and other oversized construction & mining equipment. Custom design is available to meet your special transport requirements.
