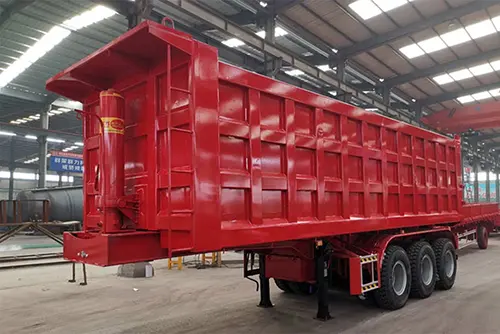

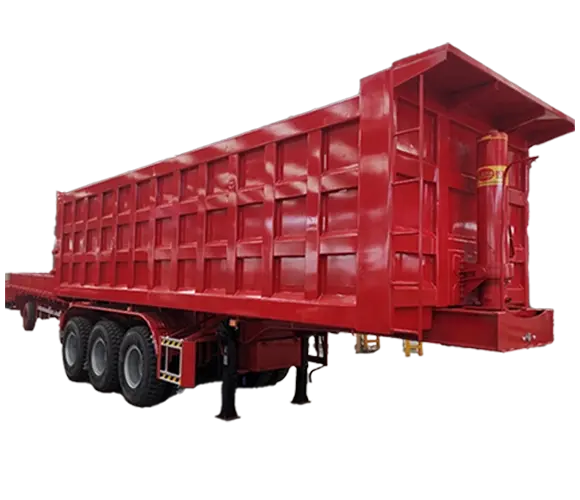

35 / 40CBM 3 Axles Rear Tipper Semi Trailer
3 axles rear tipper semi trailer, inner dimension 8500×2500×3950mm, 35m³ loading volume. High tensile T700 steel main beam, full HYVA lifting cylinder, optional 13T/16T FUWA/BPW/TITAN axles. Heavy mechanical suspension with 10-layer leaf springs, JOST kingpin and landing gear, WABCO valve, overseas LED lights, ABS optional for mining and construction bulk materials transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 35 / 40CBM 3 Axles Rear Tipper Semi Trailer is a heavy-duty rear tipping semi trailer with inner dimension 8500×2500×3950 mm, standard loading volume of 35m³ (40CBM available as option). The main beam adopts high tensile T700 steel with 480mm height; upper and lower plates are 14mm, middle web plate 8mm for strong load-bearing capacity while controlling tare weight.
The cargo box structure: 4mm checkered floor plate, 4mm side walls and 8mm thick end plate for anti-abrasion and impact resistance. It is equipped with a full set of HYVA hydraulic lifting cylinder for steady, safe tipping and unloading.
It can be fitted with 13-ton or 16-ton axles of FUWA, BPW or TITAN brand. Multiple rim and tire combinations are available to meet different road conditions. The mechanical suspension is matched with heavy leaf springs: 90mm width, 13mm thickness, 10 layers, offering outstanding shock absorption on rugged roads.
Core components include JOST kingpin (2.0” / 3.5”, bolted or welded) and JOST landing gear. It adopts WABCO control valve and special LED lights complying with overseas standards; ABS is optional.
Key Features
- High Tensile T700 Main Beam: Great strength, lighter tare weight and long service life.
- Reliable HYVA Lifting Cylinder: Stable tipping performance, low failure rate.
- Heavy-duty Multi-layer Leaf Spring Mechanical Suspension: Adaptable for mines and rough roads.
- Optional 13T /16T Famous-brand Axles: Flexible configuration for different payload limits.
- Overseas Standard LED Lighting: Meets international road lighting requirements.
- Multiple Tire & Rim Options: Suitable for highway and off-road scenarios.
- Volume Optional 35CBM /40CBM: Match different customer transport plans.
- Inner Dimension: 8500mm × 2500mm × 3950mm
- Main Beam: Height: 480mm; Upper plate: 14mm; Middle plate: 8mm; Lower plate:14mm; Material: T700 steel
- Floor Plate: 4mm checkered plate
- Side Wall Thickness: 4mm
- End Plate Thickness: 8mm
- Total Volume: 35m³ (40CBM optional)
- Lifting System: Full set of HYVA lifting cylinder
- Axle: 13T / 16T, FUWA / BPW / TITAN brand optional
- Rim: 8.0-20 or 9.00-20
- Tire: 8.25R20 / 10.00R20 / 11.00R20 / 12R22.5
- Suspension: Mechanical suspension
- Leaf Spring: 90mm (W) × 13mm (Thickness), 10 layers
- Kingpin: JOST brand, 2.0” or 3.5”, bolted or welded type
- Landing Gear: JOST brand
- ABS: Optional
- Control Valve: WABCO valve
- Lights: LED lights specially for overseas markets
This 3-axle rear dump tipper semi trailer is designed to haul sand, stone, aggregate, coal, soil and other bulk loose materials. Built with high-tensile T700 steel frame and reliable HYVA hydraulic lifting cylinder, it performs excellently on mine roads, construction sites and rough unpaved routes, widely supplied to overseas mining and infrastructure projects.
