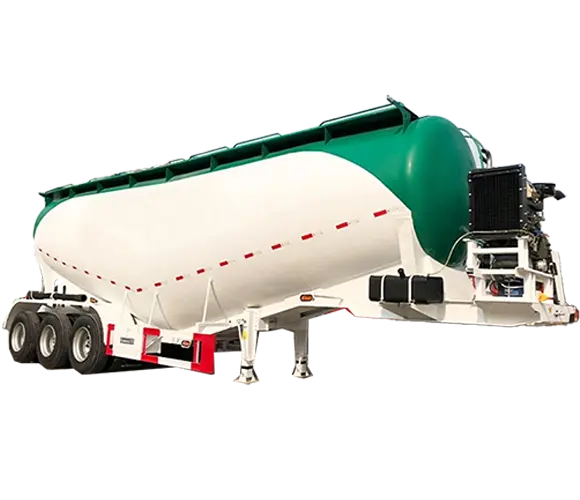

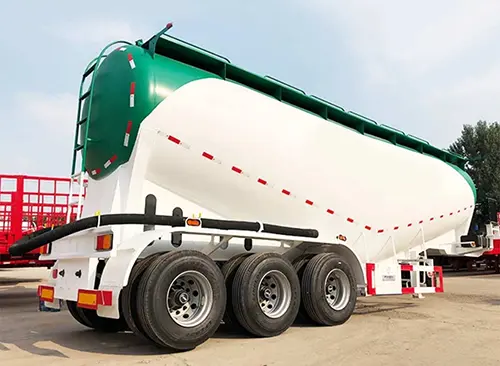

40CBM 3 Axles Cement Bulk Tank Semi Trailer
40CBM three-axle cement bulk tank semi trailer, optional capacity 30–60CBM, equipped with BOHAI/KEFA double-cylinder air compressor and WEICHAI diesel engine, for pneumatic transport of cement, lime and other dry powder materials, fitted with JOST landing gear and WABCO brake system.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 40CBM 3 Axles Cement Bulk Tank Semi Trailer is a professional pneumatic bulk powder tanker. Its standard dimension is 11000×2500×3650mm, and tank volume is optional from 30CBM to 60CBM. The tank body is made of high-strength wear-resistant steel, equipped with BOHAI/KEFA 12m³ double-cylinder air compressor and WEICHAI diesel engine to realize stable pneumatic discharging. It adopts heavy-duty mechanical suspension, JOST landing gear and WABCO brake system, reliable for cement plants, concrete mixing stations and building material bulk logistics.
Key Features
- Customizable Dimension: Standard size 11000×2500×3650mm, support customized design.
- Durable Tank Structure: 5mm high-strength wear-resistant steel for tank material, tank wall thickness 3.5mm.
- Flexible Capacity Selection: Tank volume optional from 30CBM to 60CBM.
- Stable Pneumatic Discharge System: BOHAI/KEFA 12m³ double cylinder air compressor driven by WEICHAI diesel engine.
- Heavy-duty Running Gear: 3 axles with heavy-duty mechanical suspension, adaptable to complicated road conditions.
- Complete Standard Accessories: 2 spare tire racks and 1 set of tool box.
- Overseas Standard Configuration: JOST landing gear, WABCO brake system, 24V LED lights for overseas markets.
- High-quality Polyurethane Coating: Excellent anti-corrosion and anti-rust property for extended service life.
- Dimension(L*W*H)：11000*2500*3650 mm, customized sizes or designed according to customers’ needs
- Tanker body material：5mm high strength wear-resistance steel
- Volume：30CBM To 60CBM
- Axles：3 axles
- Tire：12 units
- Application：BOHAI/KEFA brand, for transporting lime, cement, powder etc.
- Tank body thickness：3.5mm
- Compressor：BOHAI/KEFA brand 12m³ double cylinder air compressor
- Spare tire rack：2 units
- Diesel Engine：WEICHAI Brand
- Suspension：Heavy duty mechanical suspension
- Landing gear：JOST
- Brake system：WABCO
- Light：LED light, specially intended for oversea markets
- Voltage：24V
- Tool box：1 set
- Painting：Polyurethane paint, with long service life, anti-rust performance
This bulk cement tank semi trailer adopts pneumatic unloading structure, mainly used for transporting cement, lime, fly ash and other dry powder bulk materials. The tank volume and overall dimensions can be customized to meet different transportation demands.
