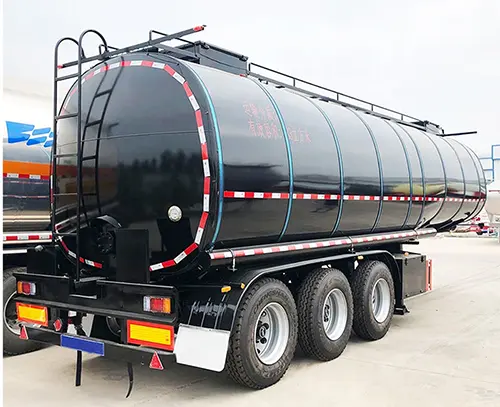

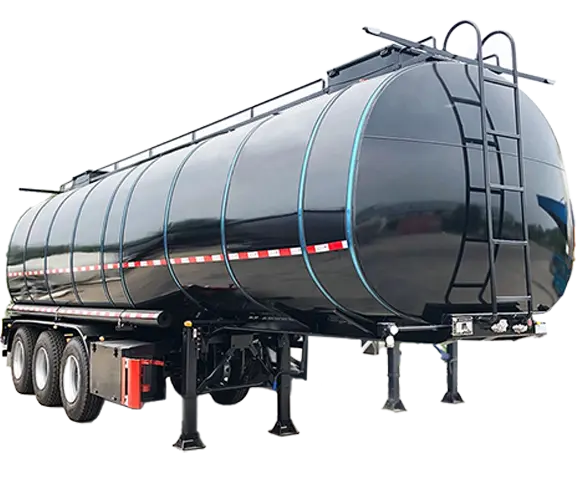

Liquid Tanker Asphalt Bitumen Tank Semi Trailer
35m³ asphalt bitumen tanker semi trailer, round or square tank optional, 5mm Q235 carbon steel tank body with glass wool insulation and heating pipes. Equipped with FUWA 3 axles, mechanical leaf spring suspension, JOST 3.5” bolt-in king pin, WABCO RE6 relay valve brake system, ABS optional, specially for hot bitumen transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The Liquid Asphalt Bitumen Tank Semi Trailer is a 35m³ heavy-duty heated tanker for hot bitumen transportation. The tank shape can be round or square. Standard overall dimension is 11500×2500×3900mm with tare weight around 10500kg. The tank shell and end plates are constructed of 5mm Q235 carbon steel, fitted with φ500mm carbon steel manhole cover.
It adopts glass wool insulation of 50mm or 80mm thickness, with four heating pipes arranged in a single row to maintain the temperature of asphalt. It is single-compartment design, equipped with 6-inch discharge valve and two pieces of 4-inch, 6-meter rubber discharge hoses.
The chassis uses welded Q345 main beam, matched with three FUWA axles and mechanical leaf spring suspension (90×13mm, 10 layers). It comes with 28T landing gear and JOST 3.5” bolt-in king pin. The pneumatic brake system is equipped with WABCO RE6 relay valve, spring brake chambers and two 45L air tanks; ABS is available as an option. Tires are 315/80R22.5 with optional tire brands. Surface treatment includes full chassis sand blasting, one anti-corrosion primer coat and two finish paint coats.
Key Features
- Insulation & Heating System: Glass wool insulation plus built-in heating pipes to prevent bitumen solidification.
- Optional Tank Shape: Round or square tank body to meet different layout requirements.
- Robust Carbon Steel Tank: Q235 tank body with reliable pressure resistance.
- Heavy-duty FUWA Axles & Mechanical Suspension: Stable performance for intercity road construction transport.
- WABCO Pneumatic Brake System: Sensitive and safe braking for high-temperature hazardous liquid cargo.
- Complete Anti-rust Painting: Sand blasting + primer + double topcoat for long service life.
- Flexible Optional Configuration: Tire brand and ABS can be selected according to customer demand.
- Tank Shape: Round or Square, optional
- Dimension(L*W*H): 11500*2500*3900 mm, exact size subject to final design
- Tare Weight: Approx. 10500 KGS
- Total Volume: 35 m³
- Tanker Body Material: 5mm Q235 carbon steel
- End Plate: 5mm Q235 carbon steel
- Manhole Cover: Carbon steel, φ500mm
- Insulation Glass Wool: 50mm or 80mm thickness optional
- Heating Pipe: 4 pcs arranged in one row
- Discharging Valve: 6 inch diameter
- Compartments: 1 single compartment
- Discharging Pipe: 4” rubber hose, 2 pcs, 6m each
- Main Beam: Welded structure, Q345 carbon steel
- Axle: 3 axles, FUWA brand
- Landing Gear: 28T domestic brand
- King Pin: JOST 3.5 inches bolt-in type
- Suspension: Mechanical suspension
- Leaf Spring: 90mm(W)*13mm(Thickness)*10 layers
- Pneumatic Brake System: WABCO RE 6 relay valve, spring brake chambers, 2 pcs 45L air tanks
- Rim: 9.00-22.5, domestic brand
- Tire: 315/80R22.5, brand optional
- ABS: Optional
- Painting Process: Full chassis sand blasting for rust removal, 1 coat anti-corrosion primer + 2 coats top finish paint
This heated bitumen tanker semi trailer is designed for transporting hot liquid asphalt. Built-in heating tubes and glass wool insulation keep bitumen fluid and avoid solidification. It is widely used in highway construction, road maintenance and asphalt mixing plant logistics.
