SGA9600TD 3-Axle 60Ton Lowbed Semi Trailer
SGA9600TD 60-ton tri-axle low bed semi trailer, FUWA 13-ton axles, Q355B manganese steel frame, mechanical suspension with 10-leaf springs, fitted with mechanical ramps, WABCO emergency relay valve, LED lights, anti-rust wax coating, two units per bulk carrier shipment。
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。

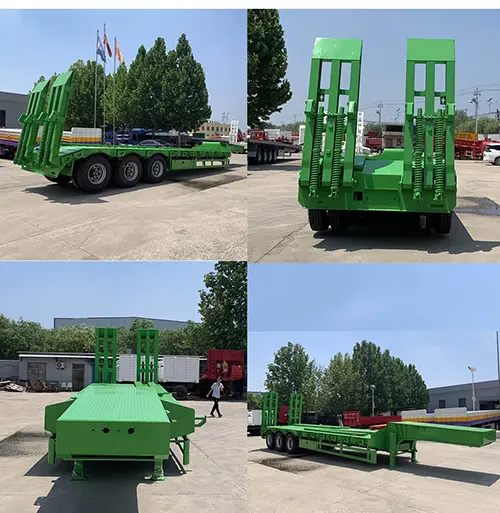

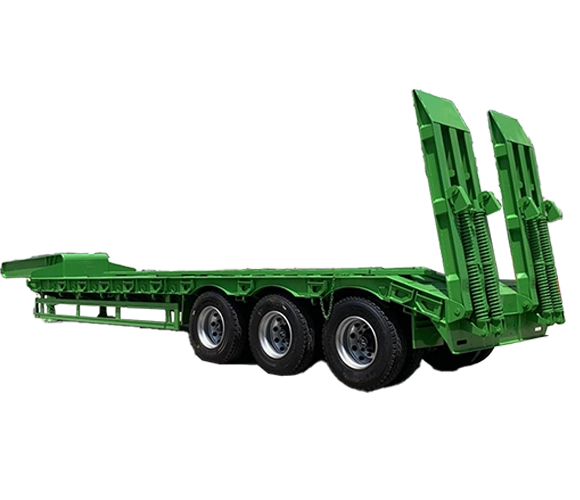

SGA9600TD is a heavy-duty 3-axle lowbed semi trailer with 60-ton loading capacity, specially designed for transporting construction machinery and oversize heavy cargo.
The whole frame adopts high-strength Q355B manganese steel. The main longitudinal beam is reinforced with thickened upper/lower flanges and web plate, matched with 25# I-beam side beam and 4mm patterned anti-slip floor, which greatly improves structural strength and anti-deformation performance under full load.
It is equipped with 3 sets of FUWA 13-ton axles, reinforced mechanical suspension with 10 leaf springs, plus 30T Goldenstone low-bed landing gear and 3.5-inch 90# kingpin, stable and durable for long-distance heavy hauling.
The braking system uses WABCO emergency relay valve with dual air chambers on rear two axles (no ABS). The whole vehicle is fitted with 24V LED lights, two spare tyre racks on the gooseneck, one toolbox and mechanical loading ramps for easy loading of wheeled machinery.
Full anti-rust wax spraying is carried out for long-term anti-corrosion. Body color can be customized. Delivery arrangement: two trailers bundled together and shipped by bulk carrier.
We provide complete spare parts and global after-sales service.
- Model: SGA9600TD Lowbed Semi Trailer
- Rated Load: 60 Ton
- Overall Dimension: 13450 × 3300 × 3700 mm
- Loading Platform Size: 9000 × 3300 × 1300 mm
- Axle: 3 axles, FUWA 13-ton grade
- Landing Gear: Goldenstone 30T low-bed dedicated landing gear
- Kingpin: 3.5" (90#)
- Tyre: 315/80R22.5 tubeless tyre, total 13 pcs (1 spare tyre), Triangle / Double Coin Luxing brand
- Main Frame: Q355B manganese steel; Main beam 520×200mm, upper flange 20mm, lower flange 20mm, web 12mm; side beam 25# I-beam; 4mm diamond plate floor
- Suspension: Reinforced mechanical suspension, 10-leaf spring
- Brake System: Dual air chambers on rear two axles, WABCO emergency relay valve, without ABS
- Electrical System: 24V, LED lamps
- Accessories: 1 tool box, 2 spare tyre racks on gooseneck, mechanical loading ramps
- Canvas: Not included
- Paint: Color customized by customer
- Anti-corrosion: Full anti-rust wax spraying
- Tractor Modification: Not required
- Shipping: Two trailers per set, bulk vessel shipment
- Transport of excavators, bulldozers, road rollers and construction machinery
- Oversized heavy equipment and engineering vehicle haulage
- Steel structure, heavy machinery and large cargo transportation
- Port, mining area and construction site heavy goods delivery
- Logistics heavy-load oversize cargo road transport
