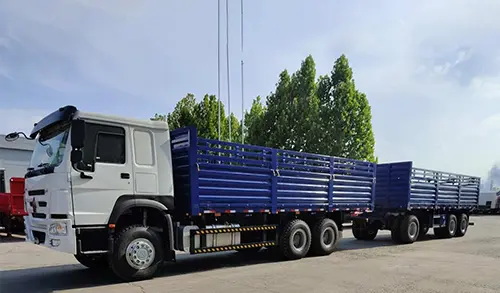

10 Wheels Fence Cargo Truck with Dolly Trailer
10 wheels fence cargo truck matched with drawbar dolly trailer, 30T loading capacity. The truck adopts fence structure with patterned plate platform. The drawbar trailer is equipped with BPW 13T axles, German type three-axle suspension and WABCO brake system, ABS optional, complying with overseas electrical standards, dimensions and color can be customized.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 10 Wheels Fence Cargo Truck with Dolly Trailer is a combined transport unit consisting of a fence cargo truck and a 30T drawbar dolly trailer. The cargo box of the truck is built with 4mm patterned plate and layered fence structure, with optional color. The matched drawbar dolly trailer adopts 20T double bead turntable, BPW 13T ten-hole axles and German three-axle suspension. It is fitted with WABCO RE6 relay valve brake system and overseas standard 24V ISO lighting circuit, ABS available as an option. It is reliable for bulk cargo, farm produce and general packaged goods transportation.
Key Features
- Combined Truck & Drawbar Trailer: Large total loading capacity of 30T, high transportation efficiency.
- Protective Fence Structure: 900mm side wall plus 440mm upper fence, effectively prevent cargo spillage.
- Wear-resistant Pattern Plate Platform: 4mm thick anti-slip patterned plate for both truck and trailer deck.
- Premium BPW Axles & German Suspension: Stable load-bearing performance, suitable for heavy-load working conditions.
- Complete Overseas-spec Brake & Electric System: WABCO relay valve, T30 brake chambers, 24V 7-pin ISO socket and full set of lamps; ABS optional.
- Customizable: Box size, trailer dimension and body color can be adjusted according to customer requirements.

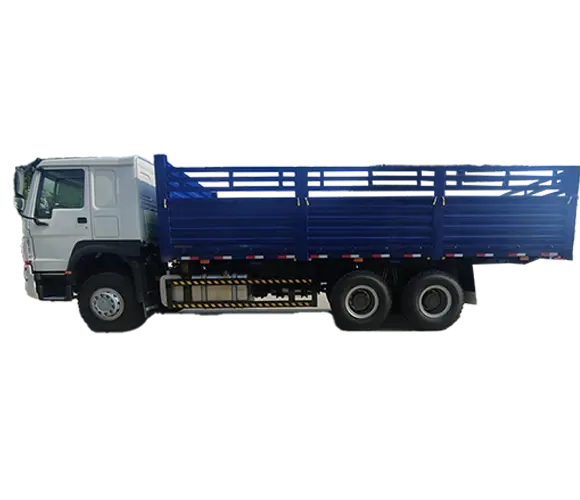

- Fence Cargo Truck
- Box Size(L*W*H): 7100*2600*1600 mm, customized sizes or designed according to customers’ needs
- Fence Structure: 900mm side wall + 100mm space + 440mm fence
- Platform: 4mm thickness pattern plate
- Color: Optional
- Drawbar Dolly Trailer
- Loading Capacity: 30T
- Dimension(L*W*H): 9800*2600*3060 mm, customized sizes or designed according to customers’ needs
- Turntable：20T double bead turntable
- Platform: 4mm thickness pattern plate
- Axle：BPW 13 T, 10 holes
- Suspension: Three-axis German type suspension
- Leaf spring: 100mm width *12mm thickness *12 layers, 6 sets
- Tires: 12.00R20, 12pcs
- Rim: 9.00-20, 12 pcs
- ABS: Optional
- Brake system: WABCO RE 6 relay valve; T30/30+T30 air chamber, 40L air tanks
- Electric system: One unit of 24V 7-pin ISO standard socket; equipped with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
This 10-wheel fence cargo truck together with drawbar dolly trailer is suitable for transporting agricultural products, packaged goods and bulk cargo. The fence design prevents cargo from falling. The drawbar trailer with heavy-duty BPW axles and German suspension ensures stable running, ideal for medium and long-distance cargo transportation.
