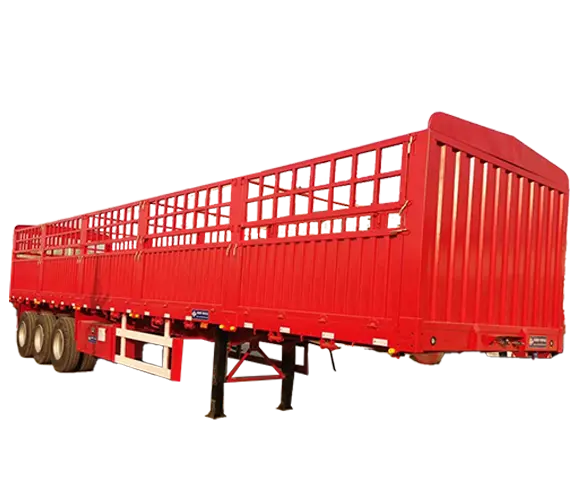

3 Axles Fence Stake Bulk Cargo Semi Trailer
3 Axles Fence Stake Bulk Cargo Semi Trailer, 60 ton payload, removable stake fence design, FUWA/BPW axles, JOST kingpin and landing gear, WABCO overseas brake valve, suitable for livestock, grain, agricultural and bulk cargo transportation.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Product Overview
The 3 Axles Fence Stake Bulk Cargo Semi Trailer is a classic stake trailer for agricultural and bulk cargo transport. Standard dimension is 13000×2500×3000mm with payload up to 60 tons. Equipped with detachable fence stakes, it is flexible for different cargo types. It adopts FUWA/BPW heavy axles, JOST coupling parts and WABCO overseas-spec brake system, stable and durable for farm, pasture and bulk logistics.
Key Features
- Customizable Size & Fence Height: Standard size 13000×2500×3000mm, fence height 1400mm, both can be adjusted as customer demand.
- Detachable Stake Fence: Fence stakes can be removed, convenient for loading and unloading.
- Heavy Load Capacity: Rated payload 60 tons.
- Premium Axles: 4 pcs 13-ton FUWA or BPW heavy-duty axles.
- Three Suspension Options: Mechanical suspension / Bogie suspension / Airbag suspension for different road conditions.
- Well-known Brand Components: JOST 2.0/3.5 inch kingpin (bolted or welded optional) and JOST C200T landing gear.
- Anti-slip Deck: 3mm thick checkered plate platform, wear resistant.
- Oversea Standard Brake System: WABCO RE6 relay valve specially for overseas market, TKL T30/30+T30 spring brake chamber and 45L air tank; ABS optional.
- Complete 24V Electrical System: ISO 7-pin socket, full set of signal lights and 6-core standard cable.
- Anti-corrosion Painting Process: SA2.5 sandblasting pretreatment, two anti-rust primer coats plus one finish coat.
- Standard Accessories: Tool box and full set of maintenance tools.
- Dimension(mm): 13000x2500x3000mm, customized sizes or designed according to customers’ needs
- Trailer Sides: 1400mm height, customized by you
- Loading capacity(ton): 60T
- Axles: 4 axles, 13T, FUWA/ BPW Brand
- Tire: 12 units, 12.00R22.5 or 315/80R22.5
- Suspension: Mechanical/Bogie/Airbag suspension
- King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
- Landing Gear: JOST brand C200T
- Bottom Platform: 3mm-thick checkered plate
- Brake Chamber: WABCO RE 6 relay valves; T30/30+T30 spring braking chamber (TKL brand), 45L air tank
- Valve: WABCO valve, specially intended for oversea market
- ABS: Optional
- Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
- Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
- Accessory: One tool box; one set of standard tools

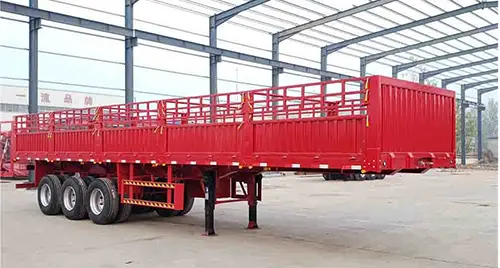

This fence stake semi trailer adopts detachable stake fence structure. It is widely used to transport grain, forage, agricultural products, livestock and other bulk goods. The stake fence can be disassembled freely, flexible to use. Customized dimension and fence height are available.
